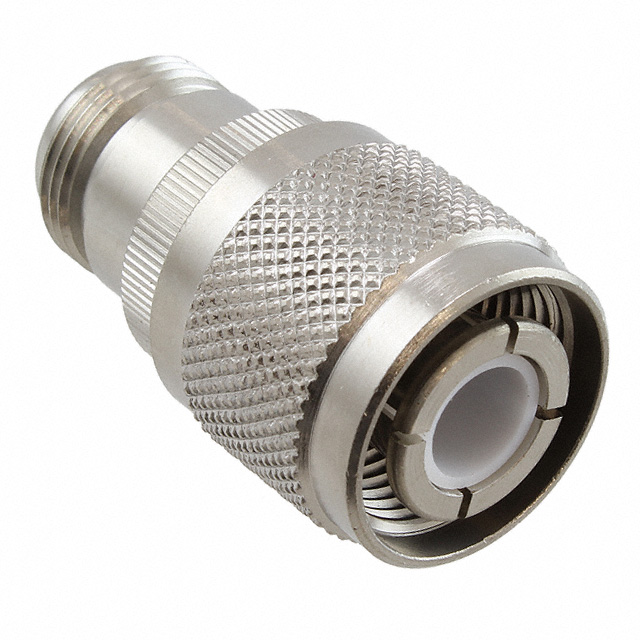

000-16050

Active

Amphenol RF

CONN TYPE N-HN ADAPTER 0HZ TO 4GHZ 50OHM ST RCP/PL SILVER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N-HN ADAPTER 0HZ TO 4GHZ 50OHM ST RCP/PL SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	000-16050

Adapter Series	N to HN
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, HN Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Center Contact Plating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mounting Type	Connector Style	Ingress Protection	Dielectric Material	Body Finish	Contact Termination	Body Material	Voltage Rating	Mating Cycles	Number of Ports	Includes	Housing Color	Frequency - Max [Max]	Center Contact Material	Cable Group	Convert To (Adapter End)	Conversion Type	Style	Adapter Series	Convert From (Adapter End)	Adapter Type	Fastening Type	Insertion Loss
Amphenol RF 082-816-1000	50 Ohms	Silver	Male Pin Plug	-65 ░C	165 °C	Clamp	Free Hanging (In-Line)	HN Type	Weatherproof	Polytetrafluoroethylene (PTFE)	Silver	Solder	Brass	1500 V	500	1	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	Silver	4 GHz	Brass	143 212 54 6A 89248 9290 Belden 1152A RG-6
Amphenol RF 000-16050	50 Ohms	Silver		-65 ░C	165 °C		Free Hanging (In-Line)			Polytetrafluoroethylene (PTFE)	Nickel		Brass						4 GHz	Beryllium Copper		HN Plug Male Pin	Between Series	Straight	N to HN	Female Socket N Jack	Plug to Jack
Amphenol RF 000-16300	50 Ohms	Silver	Male Pin Plug	-65 ░C	165 °C	Clamp	Free Hanging (In-Line)	BNC	Weatherproof	Polytetrafluoroethylene (PTFE)	Nickel	Solder	Brass	500 V	500	1	Braid Clamp Clamp Connector Contact Gasket Insulator Washer	Silver	4 GHz	Brass	180 180A 180B 1865A 195 Belden 1855 RG-122							Bayonet Lock	0.2 dB
Amphenol RF 000-16750	50 Ohms	Silver	Male Pin Plug	-65 ░C	165 °C	Clamp		HN Type		Polytetrafluoroethylene (PTFE)	Nickel	Solder	Brass		500	1		Silver	4 GHz	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To HN Plug, Male Pin 50 Ohms
