082-816-1000
ActiveAmphenol RF

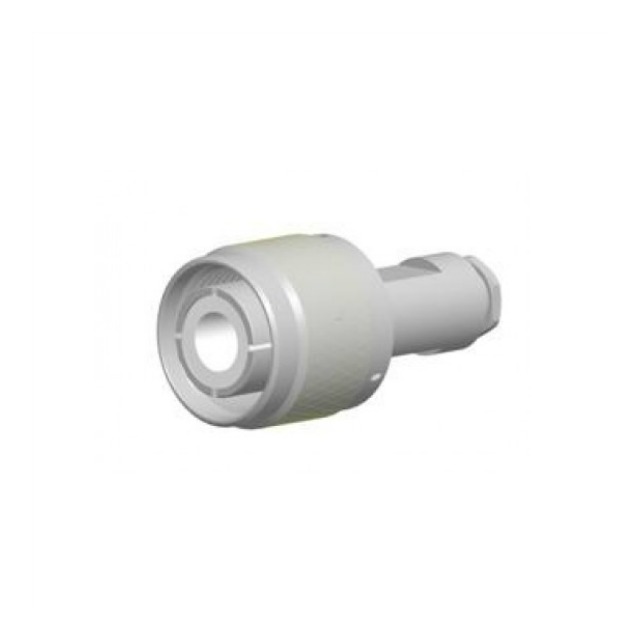

CONNECTOR: COAXIAL; PLUG; MALE; HN; SOLDERING,CLAMP; FOR CABLE
Deep-Dive with AI
Search across all available documentation for this part.
082-816-1000
ActiveAmphenol RF
CONNECTOR: COAXIAL; PLUG; MALE; HN; SOLDERING,CLAMP; FOR CABLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 082-816-1000 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | 9290, 6A, Belden 1152A, RG-6, 89248, 212, 54, 143 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | HN Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp |
| Ingress Protection | Weatherproof |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Clamp |
| Voltage Rating | 1500 V |
082-816 Series
| Part | Impedance | Center Contact Plating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Mounting Type | Connector Style | Ingress Protection | Dielectric Material | Body Finish | Contact Termination | Body Material | Voltage Rating | Mating Cycles | Number of Ports | Includes | Housing Color | Frequency - Max [Max] | Center Contact Material | Cable Group | Convert To (Adapter End) | Conversion Type | Style | Adapter Series | Convert From (Adapter End) | Adapter Type | Fastening Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | Free Hanging (In-Line) | HN Type | Weatherproof | Polytetrafluoroethylene (PTFE) | Silver | Solder | Brass | 1500 V | 500 | 1 | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer | Silver | 4 GHz | Brass | 143 212 54 6A 89248 9290 Belden 1152A RG-6 | ||||||||
Amphenol RF | 50 Ohms | Silver | -65 ░C | 165 °C | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 4 GHz | Beryllium Copper | HN Plug Male Pin | Between Series | Straight | N to HN | Female Socket N Jack | Plug to Jack | |||||||||||||
Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | Free Hanging (In-Line) | BNC | Weatherproof | Polytetrafluoroethylene (PTFE) | Nickel | Solder | Brass | 500 V | 500 | 1 | Braid Clamp Clamp Connector Contact Gasket Insulator Washer | Silver | 4 GHz | Brass | 180 180A 180B 1865A 195 Belden 1855 RG-122 | Bayonet Lock | 0.2 dB | ||||||
Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | HN Type | Polytetrafluoroethylene (PTFE) | Nickel | Solder | Brass | 500 | 1 | Silver | 4 GHz | Brass | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
082-816 Series
HN Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
