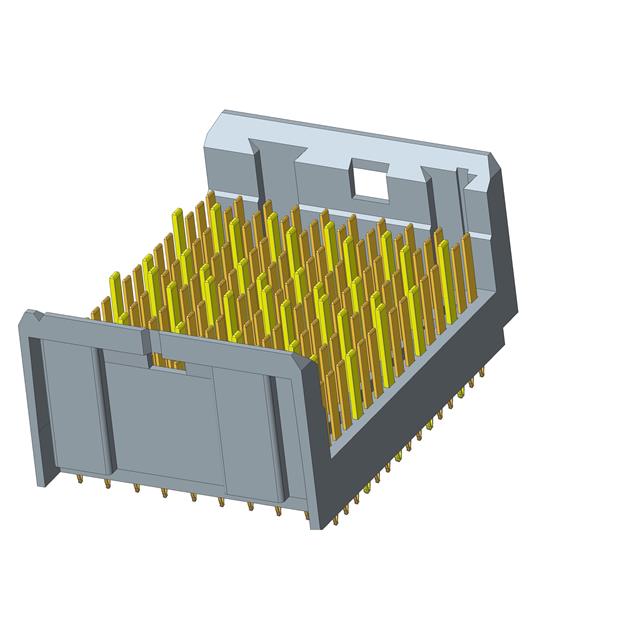

10122771-101LF

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10122771-101LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Features	Protective Cover
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Color	Number of Columns	Connector Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Connector Usage	Material Flammability Rating	Number of Positions	Termination	Connector Style	Mounting Type	Contact Finish	Features	Number of Rows	Current Rating (Amps)	Voltage Rating
Amphenol ICC (FCI) 10122771-1011LF	Black	10	Header Male Pins	All	85 °C	-55 °C	0.079 in	2 mm	Daughtercard	UL94 V-0	150	Press-Fit	High Speed	Through Hole	Gold	Protective Cover
Amphenol ICC (FCI) 10122771-101LF	Black	10	Header Male Pins	All	85 °C	-55 °C			Daughtercard	UL94 V-0	150	Press-Fit	High Speed	Through Hole	Gold	Protective Cover
Amphenol ICC (FCI) 10122771-111LF	Black	10	Header Male Pins	All	85 °C	-55 °C	0.079 in	2 mm	Daughtercard	UL94 V-0	150	Press-Fit	High Speed	Through Hole			15	500 mA	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	406	$ 15.53

General part information

150 Connector Header, Male Pins Through Hole Black High Speed
