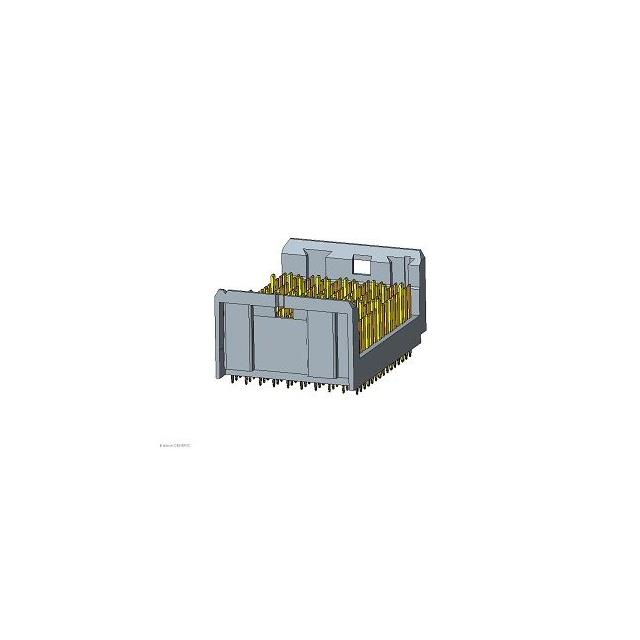

Specification	10122771-111LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Current Rating (Per Contact)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC

10122771 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Pitch	Number of Columns	Features	Connector Usage	Number of Positions	Connector Type	Termination	Connector Style	Number of Positions Loaded	Contact Finish	Mounting Type	Color	Voltage Rating	Voltage Rating (Type)	Current Rating (Per Contact)	Number of Rows
Amphenol ICC (FCI) 10122771-1011LF	-55 °C	85 °C	UL94 V-0	0.079 in	10	Protective Cover	Daughtercard	150	Header Male Pins	Press-Fit	High Speed	All	Gold	Through Hole	Black
Amphenol ICC (FCI) 10122771-101LF	-55 °C	85 °C	UL94 V-0		10	Protective Cover	Daughtercard	150	Header Male Pins	Press-Fit	High Speed	All	Gold	Through Hole	Black
Amphenol ICC (FCI) 10122771-111LF	-55 °C	85 °C	UL94 V-0	0.079 in	10		Daughtercard	150	Header Male Pins	Press-Fit	High Speed	All		Through Hole	Black	30 V	AC DC	500 mA	15
