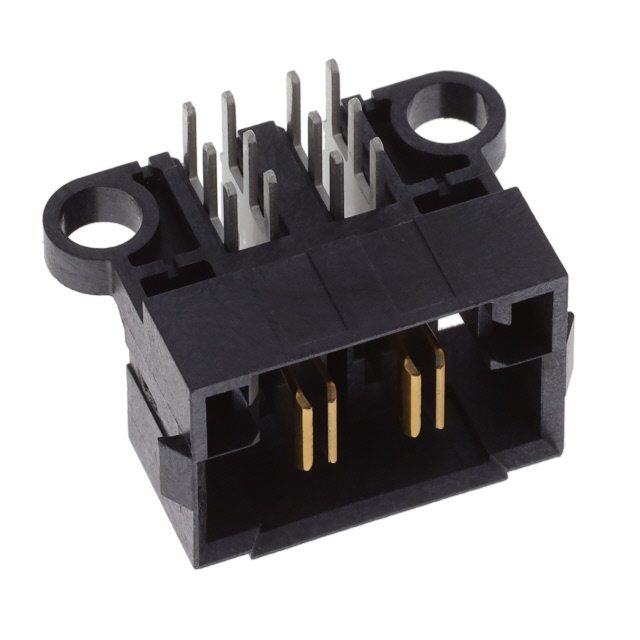

MPT-02-01-03-L-RA-SD

Active

Samtec Inc.

CONN HDR 2POS 5.00MM EDGE RA SLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 2POS 5.00MM EDGE RA SLD

Technical Specifications

Parameters and characteristics for this part

Specification	MPT-02-01-03-L-RA-SD

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Fastening Type	Locking Ramp, Screw Lock
Features	Flange
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	812 V

Part	Pitch [x]	Pitch [x]	Color	Contact Finish	Number of Rows	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Current Rating (Amps)	Features	Voltage Rating	Contact Material	Mounting Type	Material - Insulation
Samtec Inc. MPT-02-01-01-L-RA-LC	5 mm	0.197 in	Black	Gold	1	Locking Ramp	2	-55 °C	125 °C	Header Male Blades	10 Áin	0.25 Ám	Solder	30 A	Board Lock Flange	812 V	Copper Alloy	Through Hole Right Angle	Liquid Crystal Polymer (LCP)
Samtec Inc. MPT-02-01-01-T-RA-SD	5 mm	0.197 in	Black	Tin	1	Locking Ramp Screw Lock	2	-55 °C	105 ░C	Header Male Blades			Solder	30 A	Flange	812 V	Copper Alloy	Board Edge Right Angle Through Hole	Liquid Crystal Polymer (LCP)
Samtec Inc. MPT-02-6.30-03-L-V	5 mm	0.197 in	Black	Gold	1	Locking Ramp	2	-55 °C	125 °C	Header Male Blades	10 Áin	0.25 Ám	Solder	30 A	Board Guide Latch Lock	812 V	Copper Alloy	Through Hole	Liquid Crystal Polymer (LCP)
Samtec Inc. MPT-02-01-03-L-RA-SD	5 mm	0.197 in	Black	Gold	1	Locking Ramp Screw Lock	2	-55 °C	125 °C	Header Male Blades	10 Áin	0.25 Ám	Solder	30 A	Flange	812 V	Copper Alloy	Board Edge Right Angle Through Hole	Liquid Crystal Polymer (LCP)
Samtec Inc. MPT-02-6.30-01-L-V	5 mm	0.197 in	Black	Gold	2	Locking Ramp	2	-55 °C	125 °C	Header Male Blades	10 Áin	0.25 Ám	Solder	30 A	Board Guide Latch Lock	812 V	Copper Alloy	Through Hole	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Board Edge, Through Hole, Right Angle
