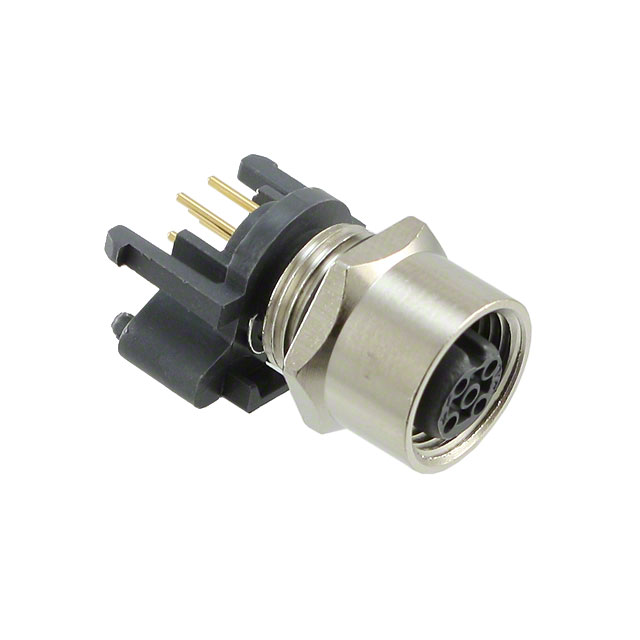

43-01165
ActiveAmphenol CONEC
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-01165
ActiveAmphenol CONEC
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-01165 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
43-0116 Series
| Part | Features | Shell Finish | Shell Size - Insert | Shielding | Primary Material | Ingress Protection | Contact Finish - Mating | Shell Material | Material Flammability Rating | Voltage Rating | Mounting Feature | Color | Orientation | Mounting Type | Connector Type | Current Rating (Amps) | Insert Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Board Guide Board Lock | Nickel | M12-4 | Shielded | Metal | IP67 - Dust Tight Waterproof | Gold | Copper Zinc | UL94 | 250 VDC | Bulkhead - Front Side Nut | Silver | A | Panel Mount Through Hole | Male Pins Receptacle | 4 A | Polyamide (PA66) Nylon 6/6 | Solder | -30 ░C | 85 °C | 4 | Copper Zinc |
Amphenol CONEC | Board Guide Board Lock | Nickel | M12-4 | Shielded | Metal | IP67 - Dust Tight Waterproof | Gold | Copper Zinc | UL94 V-0 | 250 VDC | Bulkhead | Silver | A | Panel Mount Through Hole | Female Sockets Plug | 4 A | Polyamide (PA66) Nylon 6/6 | Solder | -30 ░C | 80 C | 4 | Copper Zinc |
Amphenol CONEC | Board Guide Board Lock | Nickel | M12-5 | Unshielded | Metal | IP67 - Dust Tight Waterproof | Gold | Copper Zinc | UL94 V-0 | 60 VDC | Bulkhead | Silver | A | Panel Mount Through Hole | Female Sockets Plug | 4 A | Polyamide (PA66) Nylon 6/6 | Solder | -30 ░C | 80 C | Copper Zinc | |
Amphenol CONEC | Board Guide Board Lock | Nickel | M12-5 | Shielded | Metal | IP67 - Dust Tight Waterproof | Gold | Copper Zinc | UL94 V-0 | 60 VDC | Bulkhead | Silver | A | Panel Mount Through Hole | Female Sockets Plug | 4 A | Polyamide (PA66) Nylon 6/6 | Solder | -30 ░C | 80 C | Copper Zinc | |
Amphenol CONEC | Board Guide Board Lock | Nickel | M12-4 | Unshielded | Metal | IP67 - Dust Tight Waterproof | Gold | Copper Zinc | UL94 | 250 VDC | Bulkhead - Front Side Nut | Silver | A | Panel Mount Through Hole | Male Pins Receptacle | 4 A | Polyamide (PA66) Nylon 6/6 | Solder | -30 ░C | 85 °C | 4 | Copper Zinc |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 90 | $ 7.78 | |
Description
General part information
43-0116 Series
5 Position Circular Connector Plug, Female Sockets Solder
