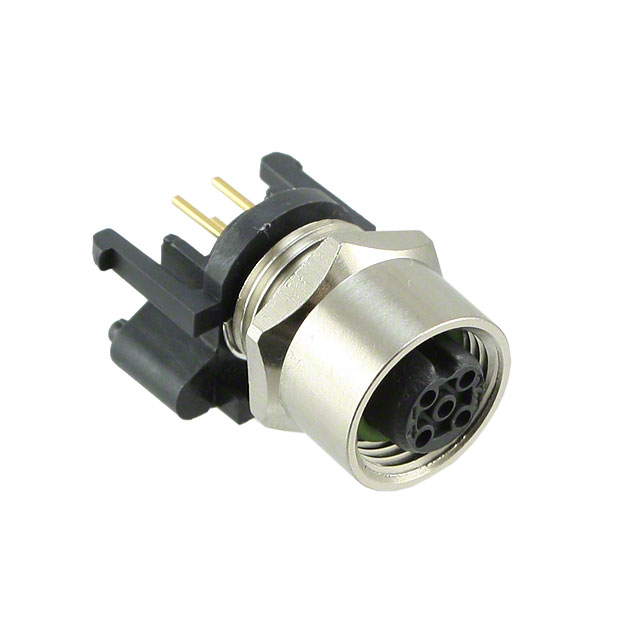

43-01163

Active

Amphenol CONEC

CONN PLUG FMALE 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01163

Active

Amphenol CONEC

CONN PLUG FMALE 4POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01163

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

43-0116 Series

Part	Features	Shell Finish	Shell Size - Insert	Shielding	Primary Material	Ingress Protection	Contact Finish - Mating	Shell Material	Material Flammability Rating	Voltage Rating	Mounting Feature	Color	Orientation	Mounting Type	Connector Type	Current Rating (Amps)	Insert Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material
Amphenol CONEC 43-01167	Board Guide Board Lock	Nickel	M12-4	Shielded	Metal	IP67 - Dust Tight Waterproof	Gold	Copper Zinc	UL94	250 VDC	Bulkhead - Front Side Nut	Silver	A	Panel Mount Through Hole	Male Pins Receptacle	4 A	Polyamide (PA66) Nylon 6/6	Solder	-30 ░C	85 °C	4	Copper Zinc
Amphenol CONEC 43-01163	Board Guide Board Lock	Nickel	M12-4	Shielded	Metal	IP67 - Dust Tight Waterproof	Gold	Copper Zinc	UL94 V-0	250 VDC	Bulkhead	Silver	A	Panel Mount Through Hole	Female Sockets Plug	4 A	Polyamide (PA66) Nylon 6/6	Solder	-30 ░C	80 C	4	Copper Zinc
Amphenol CONEC 43-01164	Board Guide Board Lock	Nickel	M12-5	Unshielded	Metal	IP67 - Dust Tight Waterproof	Gold	Copper Zinc	UL94 V-0	60 VDC	Bulkhead	Silver	A	Panel Mount Through Hole	Female Sockets Plug	4 A	Polyamide (PA66) Nylon 6/6	Solder	-30 ░C	80 C		Copper Zinc
Amphenol CONEC 43-01165	Board Guide Board Lock	Nickel	M12-5	Shielded	Metal	IP67 - Dust Tight Waterproof	Gold	Copper Zinc	UL94 V-0	60 VDC	Bulkhead	Silver	A	Panel Mount Through Hole	Female Sockets Plug	4 A	Polyamide (PA66) Nylon 6/6	Solder	-30 ░C	80 C		Copper Zinc
Amphenol CONEC 43-01166	Board Guide Board Lock	Nickel	M12-4	Unshielded	Metal	IP67 - Dust Tight Waterproof	Gold	Copper Zinc	UL94	250 VDC	Bulkhead - Front Side Nut	Silver	A	Panel Mount Through Hole	Male Pins Receptacle	4 A	Polyamide (PA66) Nylon 6/6	Solder	-30 ░C	85 °C	4	Copper Zinc

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.78
		10	$ 7.90
		30	$ 7.44
		50	$ 7.25
		100	$ 7.06
		250	$ 6.30
		500	$ 5.92
		1000	$ 5.23

Description

General part information

43-0116 Series

4 Position Circular Connector Plug, Female Sockets Solder
