5748676-2
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL 15POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5748676-2
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL 15POS 180DEG SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5748676-2 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Zinc Alloy, Metal |
| Number of Positions | 15 |
| Plating | Nickel over Copper |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.33 | |
| 10 | $ 10.25 | |||
| 25 | $ 9.98 | |||
| 50 | $ 9.60 | |||
| 100 | $ 8.89 | |||
| 250 | $ 8.84 | |||
| 500 | $ 8.51 | |||
| 1000 | $ 7.59 | |||
Description
General part information
AMPLIMITE Kit CST Series

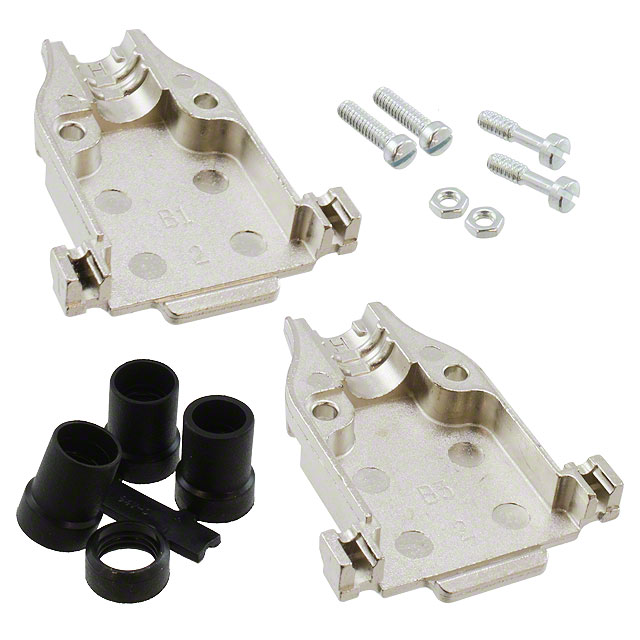

15 Position Two Piece Backshell Connector Silver 180° Shielded
