5748676-4
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL 37POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5748676-4
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL 37POS 180DEG SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5748676-4 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 37pos, HD62pos |
| Compatible Shell Size | C |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Zinc Alloy, Metal |
| Number of Positions | 37 |
| Plating | Nickel over Copper |
| Primary Material | Metal |
| Shielding | Shielded |
AMPLIMITE Kit CST Series
| Part | Accessory Type | Material | Cable Exit | Color | Cable Type | Compatible D-Sub Size | Plating | Shielding | Hardware | Features | Number of Positions | Primary Material | Compatible Shell Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Two Piece Backshell | Metal Zinc Alloy | 180 ° | Silver | Round | 37pos HD62pos | Nickel over Copper | Shielded | Assembly Hardware Grommets | Mating Screws 4-40 | 37 | Metal | C |
TE Connectivity Raychem Cable Protection | Two Piece Backshell | Metal Zinc Alloy | 180 ° | Silver | Round | 15pos HD26pos | Nickel over Copper | Shielded | Assembly Hardware Grommets | Mating Screws 4-40 | 15 | Metal | A |
TE Connectivity Raychem Cable Protection | Two Piece Backshell | Metal Zinc Alloy | 180 ° | Silver | Round | 9pos HD15pos | Nickel over Copper | Shielded | Assembly Hardware Grommets | Mating Screws 4-40 | 9 | Metal | E |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.84 | |
| 10 | $ 10.64 | |||
| 25 | $ 9.88 | |||
| 50 | $ 9.33 | |||
| 100 | $ 8.82 | |||
| 250 | $ 8.19 | |||
| 500 | $ 7.75 | |||
| 1000 | $ 7.33 | |||
Description
General part information
AMPLIMITE Kit CST Series

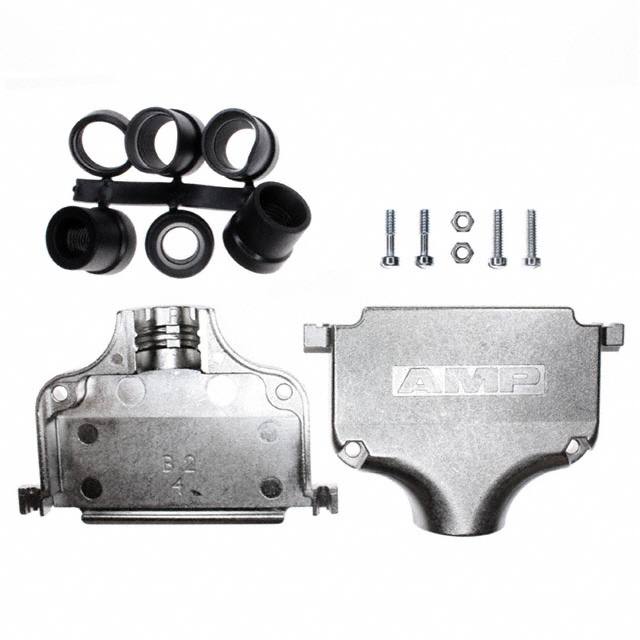

37 Position Two Piece Backshell Connector Silver 180° Shielded
