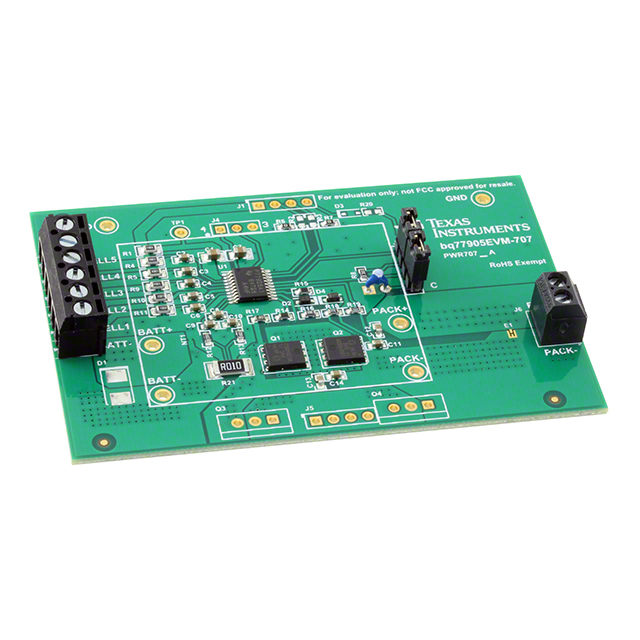

BQ77905EVM-707
ActiveEVAL BOARD FOR BQ77905
Deep-Dive with AI
Search across all available documentation for this part.
BQ77905EVM-707
ActiveEVAL BOARD FOR BQ77905
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ77905EVM-707 | BQ77905 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Battery Monitor | Battery Protection, Battery Monitor |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 5 |
| Number of Cells | - | 3 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 20-TSSOP |
| Primary Attributes | Battery Protection | Battery Protection |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ77905 | BQ77905 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 1 | $ 118.80 | |
| Digikey | Bulk | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 131.67 | |
| 5 | $ 131.66 | |||
BQ77905 Series
3- to 5-series li-ion and li-phosphate ultra-low-power stackable battery protector
| Part | Package / Case | Package / Case | Package / Case | Supplier Device Package | Function | Battery Chemistry | Number of Cells [Max] | Number of Cells [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Mounting Type | Utilized IC / Part | Primary Attributes | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ7790503PW | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790503PWR | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790502PW | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790502PWR | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790500PW | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790500PWR | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ77905EVM-707 | Battery Monitor | BQ77905 | Battery Protection | Power Management | Board(s) | |||||||||||
Texas Instruments BQ7790505PW | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790508PW | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount | ||||
Texas Instruments BQ7790508PWR | 0.173 in | 4.4 mm | 20-TSSOP | 20-TSSOP | Battery Protection | Lithium Ion | 5 | 3 | 85 °C | -40 °C | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Surface Mount |
Description
General part information
BQ77905 Series
The BQ77904 and BQ77905 devices are low-power battery pack protectors that implement a suite of voltage, current, and temperature protections without microcontroller (MCU) control. The device’s stackable interface provides simple scaling to support battery cell applications from 3 series to 20 series or more. Protection thresholds and delays are factory-programmed and available in a variety of configurations. Separate overtemperature and undertemperature thresholds for discharge (OTD and UTD) and charge (OTC and UTC) are provided for added flexibility.
The device achieves pack protection through the integrated independent CHG and DSG low-side NMOS FET drivers, which may be disabled through two control pins. These control pins may also be used to achieve cell protection solutions for higher series (6 series and beyond) in a simple and economical manner. To do this, simply cascade a higher device CHG and DSG outputs to the immediate lower device control pins. For a reduced component count, all protection faults use internal delay timers.
The BQ77904 and BQ77905 devices are low-power battery pack protectors that implement a suite of voltage, current, and temperature protections without microcontroller (MCU) control. The device’s stackable interface provides simple scaling to support battery cell applications from 3 series to 20 series or more. Protection thresholds and delays are factory-programmed and available in a variety of configurations. Separate overtemperature and undertemperature thresholds for discharge (OTD and UTD) and charge (OTC and UTC) are provided for added flexibility.
