SSF-LXH2300GD-LM

Active

Lumex Opto/Components Inc.

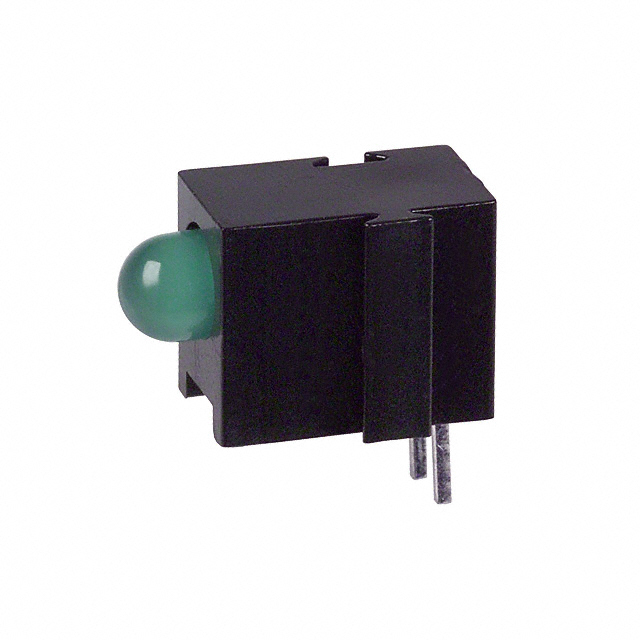

LED CBI 3MM GRN RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH2300GD-LM

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH2300GD-LM	SSF-LXH2300 Series

Color	Green	Green, Red, Yellow
Configuration	Single	Single
Current	-	25 mA
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Size	-	3 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	50 mcd	30 - 50 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	-	2 - 5 V
Wavelength - Peak	565 nm	565 - 635 nm

SSF-LXH2300 Series

LED CBI 3MM GRN RA PCMNT

Part	Mounting Type	Configuration	Viewing Angle	Lens Size	Lens Size	Color	Millicandela Rating	Current	Lens Type	Lens Style	Voltage Rating	Wavelength - Peak	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH2300GD-5V-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	30 mcd	25 mA	Diffused, Tinted	Round with Domed Top	5 V	565 nm
Lumex Opto/Components Inc. SSF-LXH2300GD-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused, Tinted	Round with Domed Top		565 nm
Lumex Opto/Components Inc. SSF-LXH2300/4ID	Through Hole, Right Angle			3 mm	T-1	Red				Round with Domed Top
Lumex Opto/Components Inc. SSF-LXH2300LGD-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused, Tinted	Round with Domed Top		565 nm
Lumex Opto/Components Inc. SSF-LXH2300ID-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused, Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300LID-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused, Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300YD-LM	Through Hole, Right Angle	Single	60 °			Yellow	50 mcd		Diffused, Tinted	Round with Domed Top	2.1 V	585 nm	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.61

Description

General part information

SSF-LXH2300 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
