SSF-LXH2300YD-LM

Active

Lumex Opto/Components Inc.

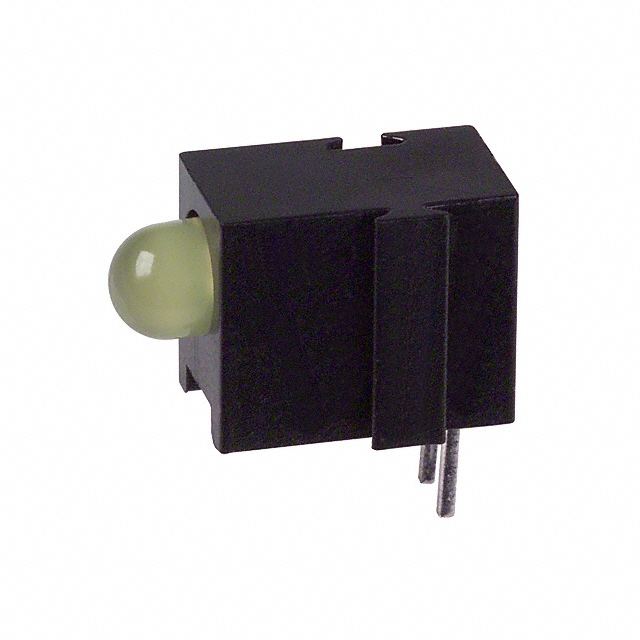

LED CBI 3MM YELLOW RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH2300YD-LM

Active

Lumex Opto/Components Inc.

LED CBI 3MM YELLOW RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH2300 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3.00mm Dia Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH2300YD-LM	SSF-LXH2300 Series

Color	Yellow	Green, Red, Yellow
Configuration	Single	Single
Current	-	25 mA
Lens Size	-	3 mm
Lens Size	-	T-1
Lens Size [diameter]	3 mm	3 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	50 mcd	30 - 50 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	2 - 5 V
Wavelength - Peak	585 nm	565 - 635 nm

SSF-LXH2300 Series

LED CBI 3MM GRN RA PCMNT

Part	Mounting Type	Configuration	Viewing Angle	Lens Size	Lens Size	Color	Millicandela Rating	Current	Lens Type	Lens Style	Voltage Rating	Wavelength - Peak	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH2300GD-5V-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	30 mcd	25 mA	Diffused, Tinted	Round with Domed Top	5 V	565 nm
Lumex Opto/Components Inc. SSF-LXH2300GD-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused, Tinted	Round with Domed Top		565 nm
Lumex Opto/Components Inc. SSF-LXH2300/4ID	Through Hole, Right Angle			3 mm	T-1	Red				Round with Domed Top
Lumex Opto/Components Inc. SSF-LXH2300LGD-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused, Tinted	Round with Domed Top		565 nm
Lumex Opto/Components Inc. SSF-LXH2300ID-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused, Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300LID-LM	Through Hole, Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused, Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300YD-LM	Through Hole, Right Angle	Single	60 °			Yellow	50 mcd		Diffused, Tinted	Round with Domed Top	2.1 V	585 nm	3 mm
