TPL7407LPWR

Active

Texas Instruments

40-V, 7-CH NMOS ARRAY LOW-SIDE DRIVER

Find alt

Alpha

TPL7407LPWR

Active

Texas Instruments

40-V, 7-CH NMOS ARRAY LOW-SIDE DRIVER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

TPL7407 Series

The TPL7407L is a high-voltage, high-current NMOS transistor array. This device consists of seven NMOS transistors that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The maximum drain-current rating of a single NMOS channel is 600 mA. New regulation and drive circuitry added to give maximum drive strength across all GPIO ranges (1.8 V – 5.0 V).The transistors can be paralleled for higher current capability.

The TPL7407L’s key benefit is its improved power efficiency and lower leakage than a Bipolar Darlington Implementation. With the lower VOLthe user is dissipating less than half the power than traditional relay drivers with currents less than 250 mA per channel.

Technical Specifications

Parameters and characteristics for this part

Specification	TPL7407LPWR

Current - Output (Max)	500 mA
Input Ratio	1
Input Type	CMOS
Interface	Parallel
Mounting Type	Surface Mount
Number of Outputs	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Low Side
Output Ratio	1
Output Type	N-Channel
Package Length	0.173 in
Package Name	16-TSSOP
Package Width	4.4 mm
Switch Type	Relay, Solenoid Driver
Voltage - Load (Max)	40 V
Voltage - Supply (Vcc/Vdd) Maximum	40 V
Voltage - Supply (Vcc/Vdd) Minimum	8.5 V

TPL7407 Series

30-V, 7-ch NMOS array low-side driver

Part	Output Ratio	Input Ratio	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Mounting Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Interface	Output Configuration	Voltage - Load (Max)	Package Name	Output Type	Current - Output (Max)	Switch Type	Package Length	Package Width	Supplied Contents	Contents	Type	Utilized IC / Part	Function	Qualification	Grade
Texas Instruments TPL7407LPWR	1	1	7	125 °C	-40 °C	CMOS	Surface Mount	40 V	8.5 V	Parallel	Low Side	40 V	16-TSSOP	N-Channel	500 mA	Relay Solenoid Driver	0.173 in	4.4 mm
Texas Instruments TPL7407LAPWR	1	1	7	125 °C	-40 °C	CMOS	Surface Mount	30 V	6.5 V	Parallel	Low Side	30 V	16-TSSOP	N-Channel	500 mA	Relay Solenoid Driver	0.173 in	4.4 mm
Texas Instruments TPL7407LADR	1	1	7	125 °C	-40 °C	CMOS	Surface Mount	30 V	6.5 V	Parallel	Low Side	30 V	16-SOIC	N-Channel	500 mA	Relay Solenoid Driver	0.154 in	3.9 mm

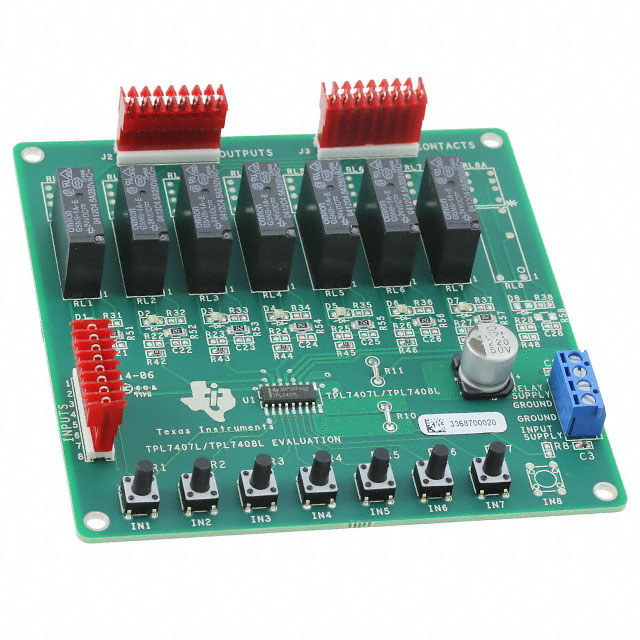

Texas Instruments TPL7407LEVM																			Board(s)	Board	Power Management	TPL7407L	Low Side Driver (External FET)
Texas Instruments TPL7407LDR	1	1	7	125 °C	-40 °C	CMOS	Surface Mount	40 V	8.5 V	Parallel	Low Side	40 V	16-SOIC	N-Channel	500 mA	Relay Solenoid Driver	0.154 in	3.9 mm
Texas Instruments TPL7407LAQPWRQ1	1	1	7	125 °C	-40 °C	CMOS	Surface Mount	30 V	6.5 V	Parallel	Low Side	30 V	16-TSSOP	N-Channel	500 mA	Relay Solenoid Driver	0.173 in	4.4 mm						AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TPL7407L 40-V 7-Channel Low Side Driver datasheet (Rev. D)
