5-794632-2
ActiveTE Connectivity AMP Connectors

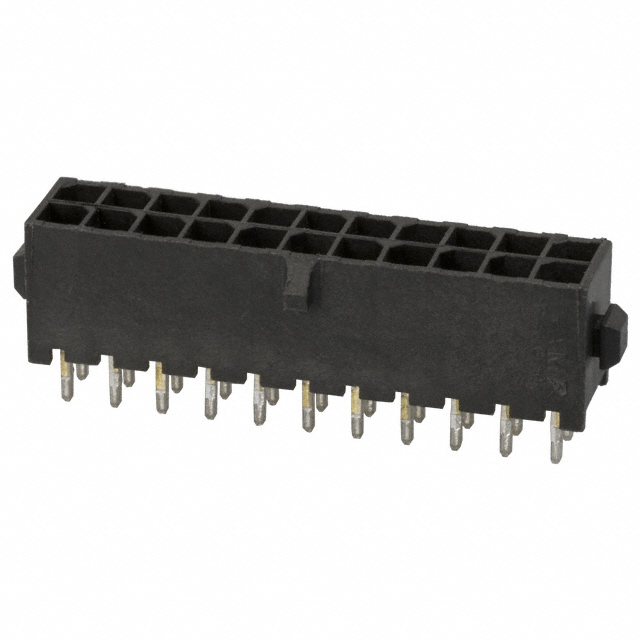

CONN HEADER VERT 22POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-794632-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 22POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-794632-2 | 794632 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 22 positions | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
| Voltage Rating | 250 VDC | 250 VDC |
794632 Series
CONN HEADER VERT 24POS 3MM
| Part | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Number of Positions | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Material Flammability Rating | Number of Rows | Voltage Rating | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Mounting Type | Contact Shape | Contact Material | Applications | Contact Finish - Mating | Contact Finish - Post | Style | Current Rating (Amps) | Connector Type | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-794632-4 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 24 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 3-794632-6 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 6 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 2-794632-4 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 24 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold or Gold-Palladium | Tin-Lead | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 3-794632-8 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 8 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 3-794632-2 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 2 | 9.25 mm | 0.364 in | Locking Ramp | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |||
TE Connectivity AMP Connectors 5-794632-0 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 20 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 5-794632-2 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 22 positions | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 3-794632-4 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 4 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 4-794632-4 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 14 | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 4-794632-6 | Male Pin | 3.18 mm | 0.125 in | Press-Fit, Solder | 9.25 mm | 0.364 in | Locking Ramp | 0.118 in | 3 mm | 3 mm | 0.118 in | Nylon, Polyamide (PA) | UL94 V-0 | 2 | 250 VDC | Shrouded - 4 Wall | 2.54 µm | 100 µin | All | Through Hole | Square | Brass | General Purpose | Gold | Tin | Board to Cable/Wire | Varies by Wire Gauge | Header | Black | -40 °C | 105 ░C | 30 Áin | 0.76 Ám | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.23 | |
| 10 | $ 7.17 | |||
| 91 | $ 6.79 | |||
| 455 | $ 6.34 | |||
| 1001 | $ 5.32 | |||
Description
General part information
794632 Series
Connector Header Through Hole 22 position 0.118" (3.00mm)
