4-794632-6

Active

TE Connectivity AMP Connectors

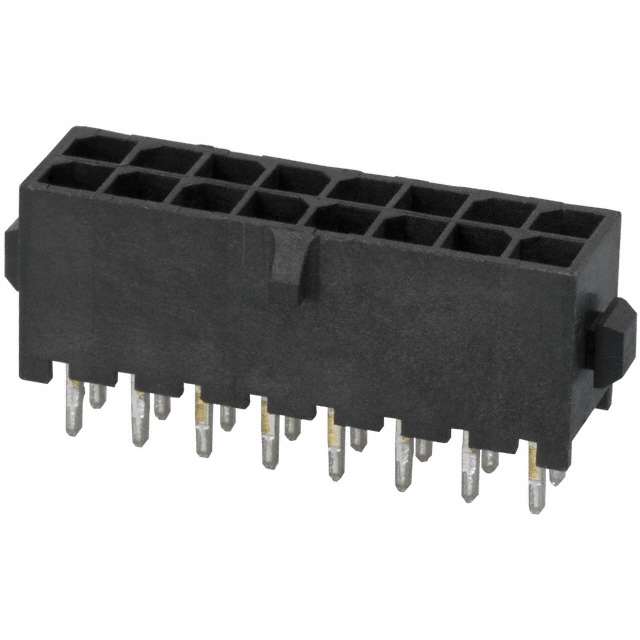

CONN HEADER VERT 16POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

4-794632-6

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.63
		10	$ 4.05
		130	$ 3.63
		520	$ 3.38
		1040	$ 3.01

Description

General part information

794632 Series

Connector Header Through Hole 16 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794632-6	794632 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder, Press-Fit	Solder, Press-Fit
Voltage Rating	250 VDC	250 VDC

794632 Series

CONN HEADER VERT 24POS 3MM

Part	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Number of Positions	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Material Flammability Rating	Number of Rows	Voltage Rating	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mounting Type	Contact Shape	Contact Material	Applications	Contact Finish - Mating	Contact Finish - Post	Style	Current Rating (Amps)	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
TE Connectivity AMP Connectors 5-794632-4	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	24	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 3-794632-6	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	6	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 2-794632-4	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	24	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold or Gold-Palladium	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 3-794632-8	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	8	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 3-794632-2	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	2	9.25 mm	0.364 in	Locking Ramp			3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 5-794632-0	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	20	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 5-794632-2	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	22 positions	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 3-794632-4	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	4	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 4-794632-4	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder	14	9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 4-794632-6	Male Pin	3.18 mm	0.125 in	Press-Fit, Solder		9.25 mm	0.364 in	Locking Ramp	0.118 in	3 mm	3 mm	0.118 in	Nylon, Polyamide (PA)	UL94 V-0	2	250 VDC	Shrouded - 4 Wall	2.54 µm	100 µin	All	Through Hole	Square	Brass	General Purpose	Gold	Tin	Board to Cable/Wire	Varies by Wire Gauge	Header	Black	-40 °C	105 ░C	30 Áin	0.76 Ám	16
