40-6518-10

Active

Aries Electronics

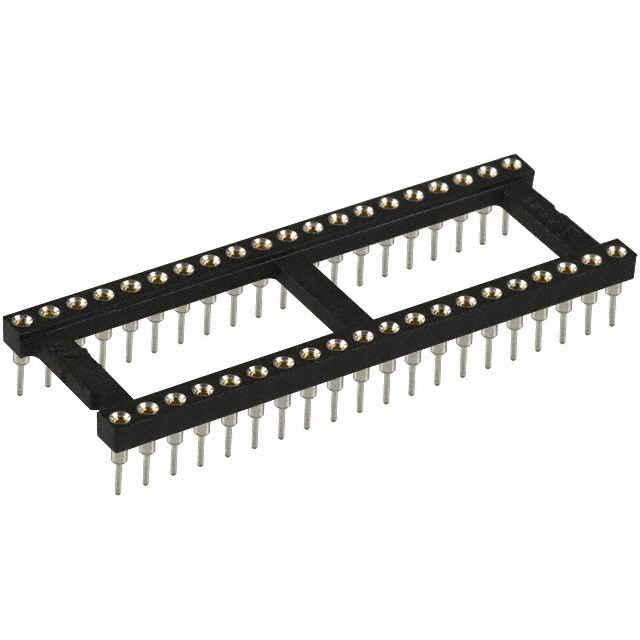

CONN IC DIP SOCKET 40POS GOLD

Search across all available documentation for this part.

Active

Aries Electronics

CONN IC DIP SOCKET 40POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	40-6518-10

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Housing Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Type	Type	Contact Material - Mating	Contact Finish - Mating	Contact Material - Post [custom]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Post	Pitch - Post	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating
Aries Electronics 40-6518-11	Glass Filled Nylon 4/6 Polyamide (PA46)	Open Frame	10 çin	0.25 çm	DIP	0.6 in	15.24 mm	Beryllium Copper	Gold	Brass	Solder	10 çin	0.25 çm	Through Hole	40	20	2	2.54 mm	0.1 in	3 A	3.18 mm	0.125 in	Gold	UL94 V-0	0.1 in	2.54 mm
Aries Electronics 40-6518-10	Glass Filled Nylon 4/6 Polyamide (PA46)	Open Frame	10 çin	0.25 çm	DIP	0.6 in	15.24 mm	Beryllium Copper	Gold	Brass	Solder	200 µin	5.08 µm	Through Hole	40	20	2	2.54 mm	0.1 in	3 A	3.18 mm	0.125 in	Tin	UL94 V-0	0.1 in	2.54 mm
Aries Electronics 40-6518-11H	Glass Filled Nylon 4/6 Polyamide (PA46)	Open Frame	10 çin	0.25 çm	DIP	0.6 in	15.24 mm	Beryllium Copper	Gold	Brass	Solder	10 çin	0.25 çm	Through Hole	40	20	2	2.54 mm	0.1 in	3 A	3.18 mm	0.125 in	Gold	UL94 V-0	0.1 in	2.54 mm
Aries Electronics 40-6518-10H	Glass Filled Nylon 4/6 Polyamide (PA46)	Open Frame	10 çin	0.25 çm	DIP	0.6 in	15.24 mm	Beryllium Copper	Gold	Brass	Solder	200 µin	5.08 µm	Through Hole	40	20	2	2.54 mm	0.1 in	3 A	3.18 mm	0.125 in	Tin	UL94 V-0	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
