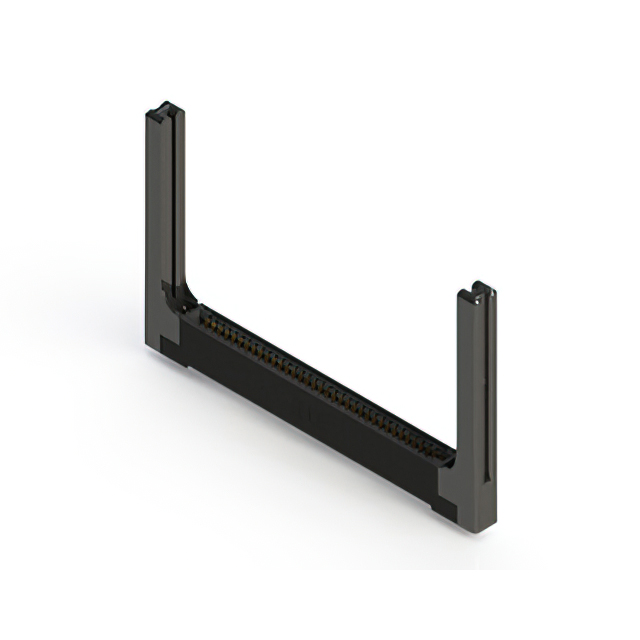

395-036-525-158
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-036-525-158
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-036-525-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-036 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Material | Contact Type | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Gender | Number of Rows | Flange Feature | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Material - Insulation | Card Type | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | ||||
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 36 | Copper Alloy | Cantilever | Through Hole Right Angle | 36 | -40 °C | 105 ░C | Single | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Non Specified - Single Edge | Gold | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 36 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Single | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Non Specified - Single Edge | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 36 | Copper Alloy | Cantilever | Through Hole Right Angle | 36 | -40 °C | 105 ░C | Single | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Non Specified - Single Edge | Gold | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | Side Mount Opening Unthreaded | |||
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole Right Angle | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 18 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Dual | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 36 | Copper Alloy | Cantilever | Through Hole | 36 | -40 °C | 105 ░C | Single | Female | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Non Specified - Single Edge | Gold | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-036 Series
36 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
