395-036-558-607

Active

EDAC Inc.

CONN EDGE SINGLE FML 36POS 0.100

395-036-558-607

Active

EDAC Inc.

CONN EDGE SINGLE FML 36POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

395-036 Series

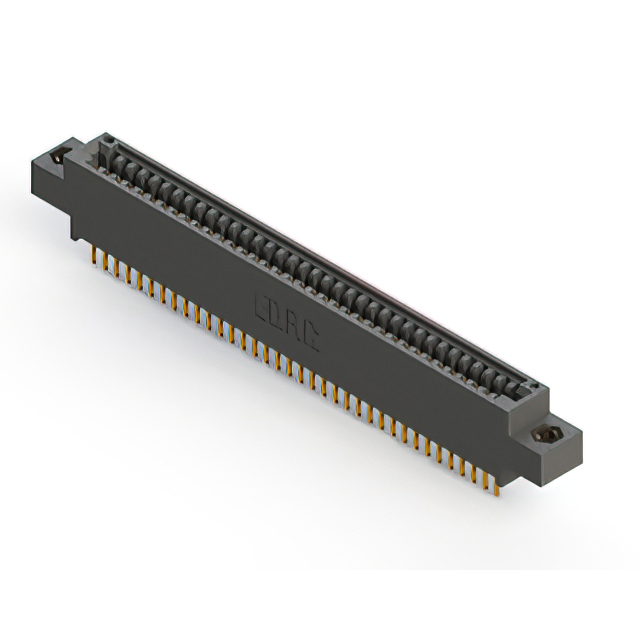

36 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	395-036-558-607

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Threaded Insert, M3
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

395-036 Series

...

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Card Type	Number of Positions	Contact Finish Thickness	Number of Rows	Termination	Read Out	Flange Feature Diameter	Flange Feature	Contact Material	Pitch	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Gender	Color	Contact Type	Features	Material - Insulation	Termination Rows
EDAC Inc. 395-036-560-203	Board Edge Straddle Mount	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Solder	Dual	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Extender	Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-521-802	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Solder	Dual	0.128 in	Top Mount Opening Unthreaded	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever		Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-544-804	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Wire Wrap	Dual	0.156 in	Top Mount Opening Unthreaded	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever		Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-542-888	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Wire Wrap	Dual		4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-542-558	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Wire Wrap	Dual		4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-558-607	Right Angle Through Hole	-40 °C	105 °C	Non Specified Single Edge	36	10 Ąin	1	Solder	Single		M3 Threaded Insert Top Mount Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever		Polyester Thermoplastic	1 rows
EDAC Inc. 395-036-523-578	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Solder	Dual		4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-525-158	Through Hole	-40 °C	105 °C	Non Specified Single Edge	36	10 Ąin	1	Solder	Single		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Guides	Polyester Thermoplastic	1 rows
EDAC Inc. 395-036-525-558	Through Hole	-40 °C	105 °C	Dual Edge Non Specified	18 36	10 Ąin	2	Solder	Dual		4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 395-036-559-112	Right Angle Through Hole	-40 °C	105 °C	Non Specified Single Edge	36	10 Ąin	1	Solder	Single	0.128 in	Flush Mount Side Opening Unthreaded	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	Female	Black	Cantilever		Polyester Thermoplastic	1 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

395-036-558-607 | Datasheet
