3801/34 100

Active

3M (TC)

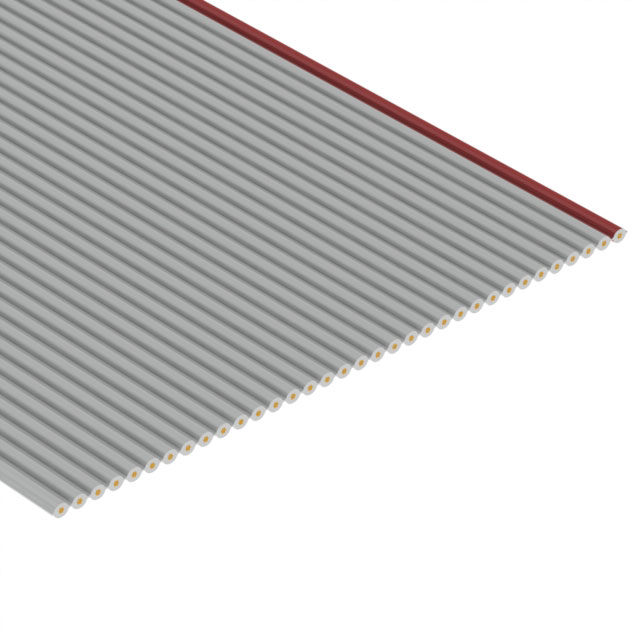

CBL RIBN 34COND 0.05 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide

3801/34 100

Active

3M (TC)

CBL RIBN 34COND 0.05 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3801/34 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 7 Strands
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft, 25 ft, 50 ft
Length	304.8 mm, 7.62 m, 15.24 m
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	34
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.99 mm
Ribbon Thickness	0.039 in
Ribbon Width [y]	1.7 in
Ribbon Width [y]	43.18 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	26 AWG

3801 Series

Part	Wire Gauge	Features	Length	Length	Spool Size	Spool Size	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Number of Conductors	Cable Type	Length	Jacket Color	Conductor Strand	Insulation Resistance	Jacket (Insulation) Material	Conductor Material	Ratings	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	First Conductor Mark	Shielding	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width
3M (TC) 3801/04	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	300 ft	91.44 m	0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	4	Flat Cable	Enter Number of Feet in Order Quantity	Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded
3M (TC) 3801/34 100	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	34	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.7 in	43.18 mm
3M (TC) 3801/40 100	26 AWG	Zippable	25 ft 50 ft	7.62 m 15.24 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	40	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	2 in	50.8 mm
3M (TC) 3801/30 100	26 AWG	Zippable	25 ft 50 ft	7.62 m 15.24 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	30	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.5 in	38.1 mm
3M (TC) 3801/64 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in			64	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	3.2 in	81.28 mm
3M (TC) 3801/34 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in			34	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.7 in	43.18 mm
3M (TC) 3801/64 100	26 AWG	Zippable	1 ft 25 ft	7.62 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	64	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	3.2 in	81.28 mm
3M (TC) 3801/09SF 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	9	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			11.43 mm	0.45 in
3M (TC) 3801/15 100	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	15	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			19.05 mm	0.75 "
3M (TC) 3801/50SF 100	26 AWG	Zippable					0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	50	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			63.5 mm	2.5 "
