3801/30 100

Active

3M (TC)

CBL RIBN 30COND 0.05 GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide +1

3801/30 100

Active

3M (TC)

CBL RIBN 30COND 0.05 GRAY

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3801/30 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 7 Strands
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 50 ft
Length	7.62 m, 15.24 m
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	30
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.99 mm
Ribbon Thickness	0.039 in
Ribbon Width [y]	38.1 mm
Ribbon Width [y]	1.5 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	26 AWG

3801 Series

Part	Wire Gauge	Features	Length	Length	Spool Size	Spool Size	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Number of Conductors	Cable Type	Length	Jacket Color	Conductor Strand	Insulation Resistance	Jacket (Insulation) Material	Conductor Material	Ratings	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	First Conductor Mark	Shielding	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width
3M (TC) 3801/04	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	300 ft	91.44 m	0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	4	Flat Cable	Enter Number of Feet in Order Quantity	Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded
3M (TC) 3801/34 100	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	34	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.7 in	43.18 mm
3M (TC) 3801/40 100	26 AWG	Zippable	25 ft 50 ft	7.62 m 15.24 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	40	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	2 in	50.8 mm
3M (TC) 3801/30 100	26 AWG	Zippable	25 ft 50 ft	7.62 m 15.24 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	30	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.5 in	38.1 mm
3M (TC) 3801/64 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in			64	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	3.2 in	81.28 mm
3M (TC) 3801/34 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in			34	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	1.7 in	43.18 mm
3M (TC) 3801/64 100	26 AWG	Zippable	1 ft 25 ft	7.62 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	64	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded	3.2 in	81.28 mm
3M (TC) 3801/09SF 300	26 AWG	Zippable	300 ft	91.44 m			0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	9	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			11.43 mm	0.45 in
3M (TC) 3801/15 100	26 AWG	Zippable	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm			0.99 mm	0.039 in	3.05 m	10 ft	15	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			19.05 mm	0.75 "
3M (TC) 3801/50SF 100	26 AWG	Zippable					0.99 mm	0.039 in	3.05 m 30.48 m	10 ft 100 ft	50	Flat Cable		Gray	7 Strands 34 AWG	10 GOhm	Poly-Vinyl Chloride (PVC)	Copper Tinned	UL Style 2651	0.05 in	1.27 mm	-20 C	105 ░C	300 V	Red	Unshielded			63.5 mm	2.5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.37
		1	$ 97.25
		1	$ 22.09
		5	$ 77.59
		5	$ 41.65
		5	$ 17.59
		10	$ 15.97
		10	$ 70.22
		10	$ 37.78
		25	$ 14.00
		25	$ 33.21
		25	$ 61.79
		50	$ 30.05
		50	$ 55.82
		50	$ 12.73
		100	$ 50.91
		100	$ 27.24
		100	$ 11.54
	Spool	100	$ 1.62
		300	$ 1.43
		500	$ 1.29
		1000	$ 1.17
		2500	$ 1.03
		5000	$ 0.94
		10000	$ 0.89

Description

General part information

3801 Series

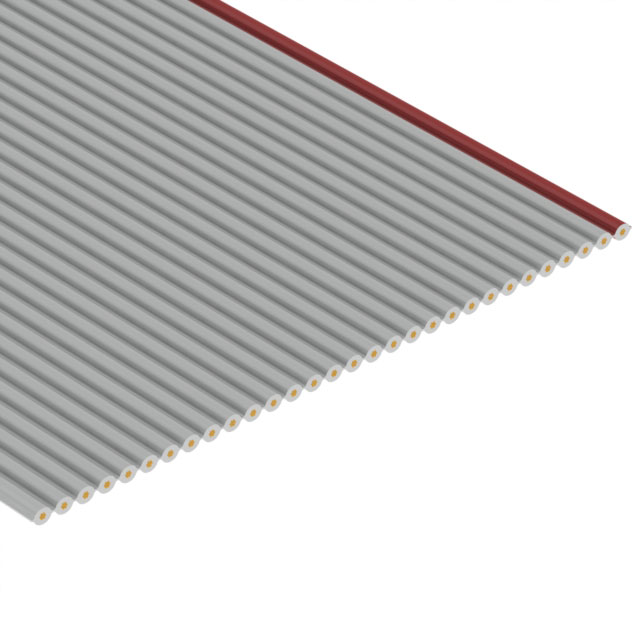

Flat Ribbon Cable Gray 30 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
