EZ-195-SM-RA-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

Search across all available documentation for this part.

EZ-195-SM-RA-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.11
		10	$ 16.24
		25	$ 15.23
		50	$ 14.50
		100	$ 13.81
		250	$ 12.94
		500	$ 12.33

Description

General part information

EZ-195 Series

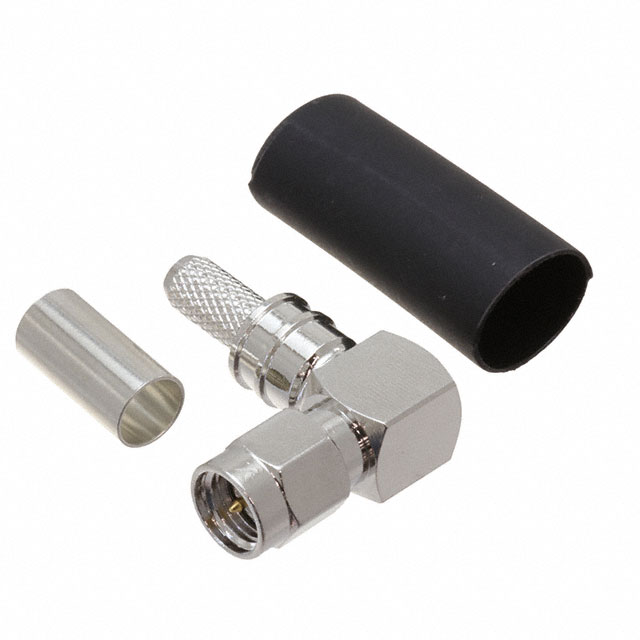

SMA Connector Plug, Male Pin Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-195-SM-RA-X	EZ-195 Series

	-	-
Body Finish	-	Tin, White Bronze
Body Material	-	Brass
Cable Group	-	LMR-200, LMR-195
Center Contact Material	-	Beryllium Copper, Phosphor Bronze
Center Contact Plating	-	Gold, Silver
Connector Style	SMA	QN, SMA, TNC, UHF, 7/16 DIN, 4.3/10, BNC, N Type, RP-TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Push On, Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Snap-On, Bayonet Lock
Frequency - Max	-	3 - 6000 MHz
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Connector, 1 Ferrule
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Operating Temperature	-	85 - 125 °C
Operating Temperature	-	-40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	1000 VDC
