EZ-195-QF-X

Active

Amphenol Times Microwave Systems

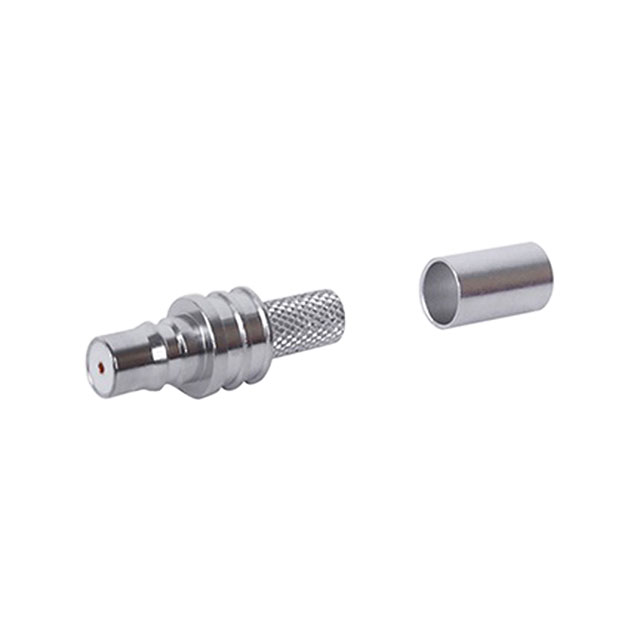

QMA-FEMALE (PLUG) CRIMP CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-195-QF-X

Active

Amphenol Times Microwave Systems

QMA-FEMALE (PLUG) CRIMP CONNECTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.51
		10	$ 12.70
		25	$ 11.48
		50	$ 10.66
		100	$ 9.92
		250	$ 9.04
		500	$ 8.45
		1000	$ 7.91

Description

General part information

EZ-195 Series

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-195-QF-X	EZ-195 Series

	-	-
Body Finish	Tin	Tin, White Bronze
Body Material	Brass	Brass
Cable Group	LMR-200, LMR-195	LMR-200, LMR-195
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold, Silver
Connector Style	QN	QN, SMA, TNC, UHF, 7/16 DIN, 4.3/10, BNC, N Type, RP-TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Push On, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Snap-On, Bayonet Lock
Frequency - Max [Max]	6000 MHz	3 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Ferrule	1 Connector, 1 Ferrule
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	1000 VDC

EZ-195 Series

QMA-FEMALE (PLUG) CRIMP CONNECTO

Part	Shield Termination	Number of Ports	Center Contact Plating	Includes	Mounting Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Center Contact Material	Body Finish	Cable Group	Connector Style	Body Material	Frequency - Max [Max]	Connector Type	Impedance	Contact Termination	Mating Cycles	Mounting Feature	Fastening Type
Amphenol Times Microwave Systems EZ-195-QF-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195-SM-RA-X	Crimp												SMA			Male Pin, Plug		Crimp
Amphenol Times Microwave Systems EZ-195/200-TF-BH-X	Crimp	1	Gold			Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	TNC	Brass	8 GHz	Female Socket, Jack	50 Ohms	Push On	500	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems EZ-195/200-QNM-RA-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Female Socket, Jack	50 Ohms	Crimp			Snap-On
Amphenol Times Microwave Systems EZ-195/200-TM-RA-X
Amphenol Times Microwave Systems EZ-195/200-UM-RA-X	Crimp	1	Silver		Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Phosphor Bronze	Tin	LMR-195, LMR-200	UHF	Brass	3 GHz	Male Pin, Plug	50 Ohms	Solder	500
Amphenol Times Microwave Systems EZ-195/200-NF-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)		85 °C	-40 °C	Silver			LMR-195, LMR-200	7/16 DIN		7.5 GHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195/200-UM-X	Crimp	1	Silver		Free Hanging (In-Line)	Polyoxymethylene (POM)	125 °C	-40 °C	Silver	Phosphor Bronze	Tin	LMR-195, LMR-200	UHF	Brass	3 GHz	Male Pin, Plug	50 Ohms	Push On	500
Amphenol Times Microwave Systems EZ-195/200-4310M-RA-X	Clamp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)		85 °C	-40 °C	Silver			LMR-195, LMR-200	4.3/10		6000 MHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195/200-QNM-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Male Pin, Plug	50 Ohms	Crimp
