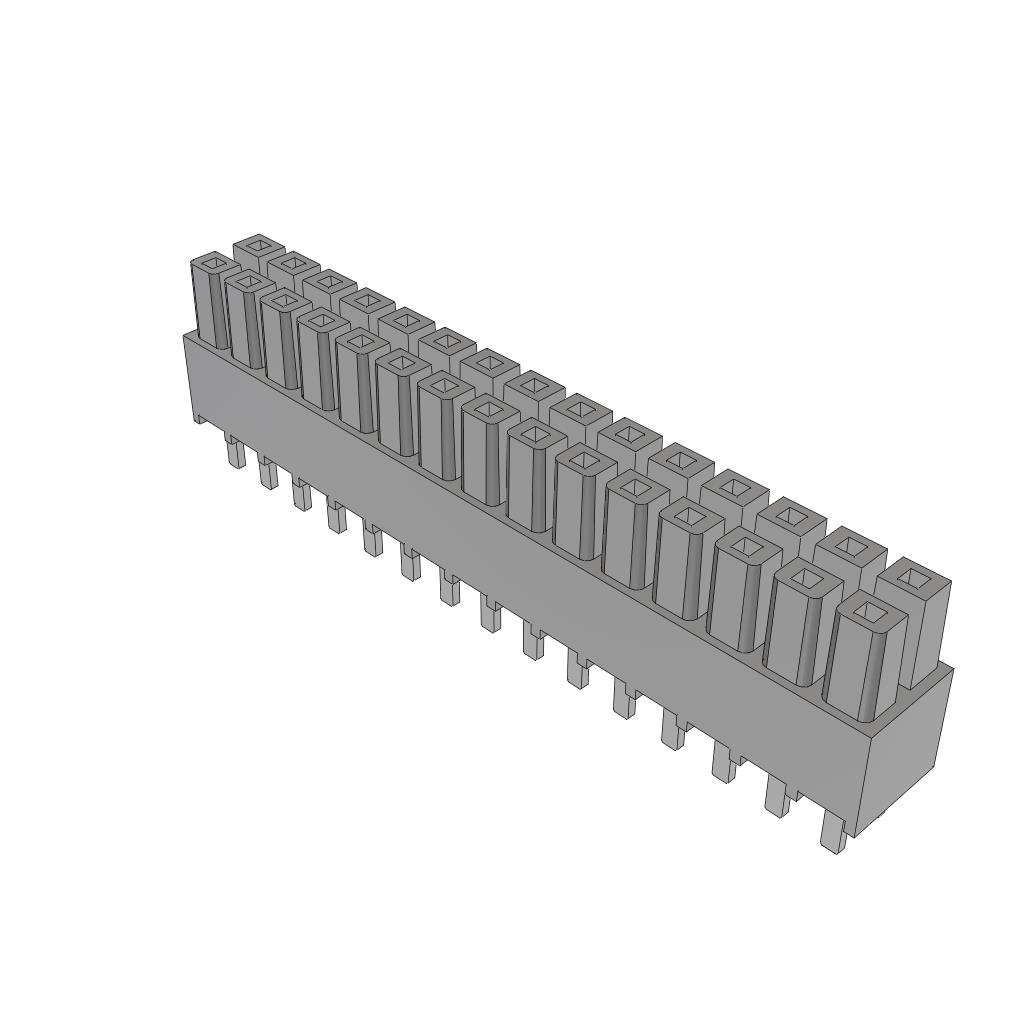

IPS1-115-L1-S-D
ActiveSamtec Inc.
CONN RCPT 30POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
IPS1-115-L1-S-D
ActiveSamtec Inc.
CONN RCPT 30POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPS1-115-L1-S-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 2.54 mm |
| Contact Length - Post | 0.1 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 775 VAC, 1095 VDC |
IPS1-115 Series
Power to the Board .100" Mini Mate Isolated Power Connector Socket Strip
| Part | Mounting Type | Voltage Rating | Contact Material | Number of Positions | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Type | Insulation Material | Insulation Color | Number of Rows | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Insulation Height | Insulation Height | Number of Positions Loaded | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Through Hole | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | 29 | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 10 çin | 0.25 çm | Push-Pull | 0.335 " | 8.51 mm | ||
Samtec Inc. | Surface Mount | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | Tin | Solder | -55 °C | 125 °C | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.335 " | 8.51 mm | All | ||||
Samtec Inc. | Surface Mount | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | Tin | Solder | -55 °C | 125 °C | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.335 " | 8.51 mm | All | Pick and Place | |||
Samtec Inc. | Surface Mount | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | Tin | Solder | -55 °C | 125 °C | Receptacle | 10 çin | 0.25 çm | Push-Pull | 0.335 " | 8.51 mm | All | ||||
Samtec Inc. | Through Hole Right Angle | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.195 in | 4.95 mm | All | ||
Samtec Inc. | Through Hole | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | 29 | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.335 " | 8.51 mm | ||
Samtec Inc. | Through Hole | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.335 " | 8.51 mm | All | ||
Samtec Inc. | Through Hole Right Angle | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | 29 | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 10 çin | 0.25 çm | Push-Pull | 0.195 in | 4.95 mm | ||
Samtec Inc. | Through Hole Right Angle | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | 29 | Tin | Solder | -55 °C | 125 °C | 2.54 mm | 0.1 in | Receptacle | 30 Áin | 0.76 Ám | Push-Pull | 0.195 in | 4.95 mm | ||
Samtec Inc. | Surface Mount | 775 VAC 1095 VDC | Phosphor Bronze | 30 | Gold | 2.54 mm | 0.1 in | Square | Female Socket | Liquid Crystal Polymer (LCP) | Black | 2 | 0.1 in | 2.54 mm | 29 | Tin | Solder | -55 °C | 125 °C | Receptacle | 10 çin | 0.25 çm | Push-Pull | 0.335 " | 8.51 mm |
