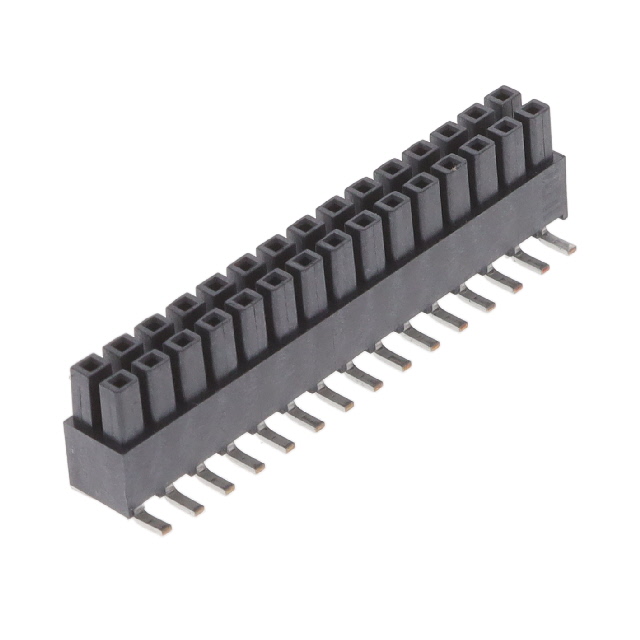

IPS1-115-01-L-D-VS-LC

Active

Samtec Inc.

CONN RCPT 30POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPS1 Datasheet IPS1 Series Other Related Documents 01 +1

IPS1-115-01-L-D-VS-LC

Active

Samtec Inc.

CONN RCPT 30POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsIPS1 Datasheet IPS1 Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPS1-115-01-L-D-VS-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPS1-115 Series

Power to the Board .100" Mini Mate Isolated Power Connector Socket Strip

Part	Mounting Type	Voltage Rating	Contact Material	Number of Positions	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Type	Insulation Material	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Features
Samtec Inc. IPS1-115-01-L-D-PL	Through Hole	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm	29	Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	10 çin	0.25 çm	Push-Pull	0.335 "	8.51 mm
Samtec Inc. IPS1-115-01-S-D-VS	Surface Mount	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm		Tin	Solder	-55 °C	125 °C			Receptacle	30 Áin	0.76 Ám	Push-Pull	0.335 "	8.51 mm	All
Samtec Inc. IPS1-115-01-S-D-VS-K	Surface Mount	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm		Tin	Solder	-55 °C	125 °C			Receptacle	30 Áin	0.76 Ám	Push-Pull	0.335 "	8.51 mm	All	Pick and Place
Samtec Inc. IPS1-115-01-L-D-VS-LC	Surface Mount	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm		Tin	Solder	-55 °C	125 °C			Receptacle	10 çin	0.25 çm	Push-Pull	0.335 "	8.51 mm	All
Samtec Inc. IPS1-115-01-S-D-RA	Through Hole Right Angle	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm		Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	30 Áin	0.76 Ám	Push-Pull	0.195 in	4.95 mm	All
Samtec Inc. IPS1-115-L1-S-D-PL	Through Hole	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm	29	Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	30 Áin	0.76 Ám	Push-Pull	0.335 "	8.51 mm
Samtec Inc. IPS1-115-L1-S-D	Through Hole	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm		Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	30 Áin	0.76 Ám	Push-Pull	0.335 "	8.51 mm	All
Samtec Inc. IPS1-115-01-L-D-RA-PL	Through Hole Right Angle	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm	29	Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	10 çin	0.25 çm	Push-Pull	0.195 in	4.95 mm
Samtec Inc. IPS1-115-01-S-D-RA-PL	Through Hole Right Angle	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm	29	Tin	Solder	-55 °C	125 °C	2.54 mm	0.1 in	Receptacle	30 Áin	0.76 Ám	Push-Pull	0.195 in	4.95 mm
Samtec Inc. IPS1-115-01-L-D-VS-PL	Surface Mount	775 VAC 1095 VDC	Phosphor Bronze	30	Gold	2.54 mm	0.1 in	Square	Female Socket	Liquid Crystal Polymer (LCP)	Black	2	0.1 in	2.54 mm	29	Tin	Solder	-55 °C	125 °C			Receptacle	10 çin	0.25 çm	Push-Pull	0.335 "	8.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.26
		25	$ 4.76
		50	$ 4.42
		100	$ 4.21
		500	$ 3.95
