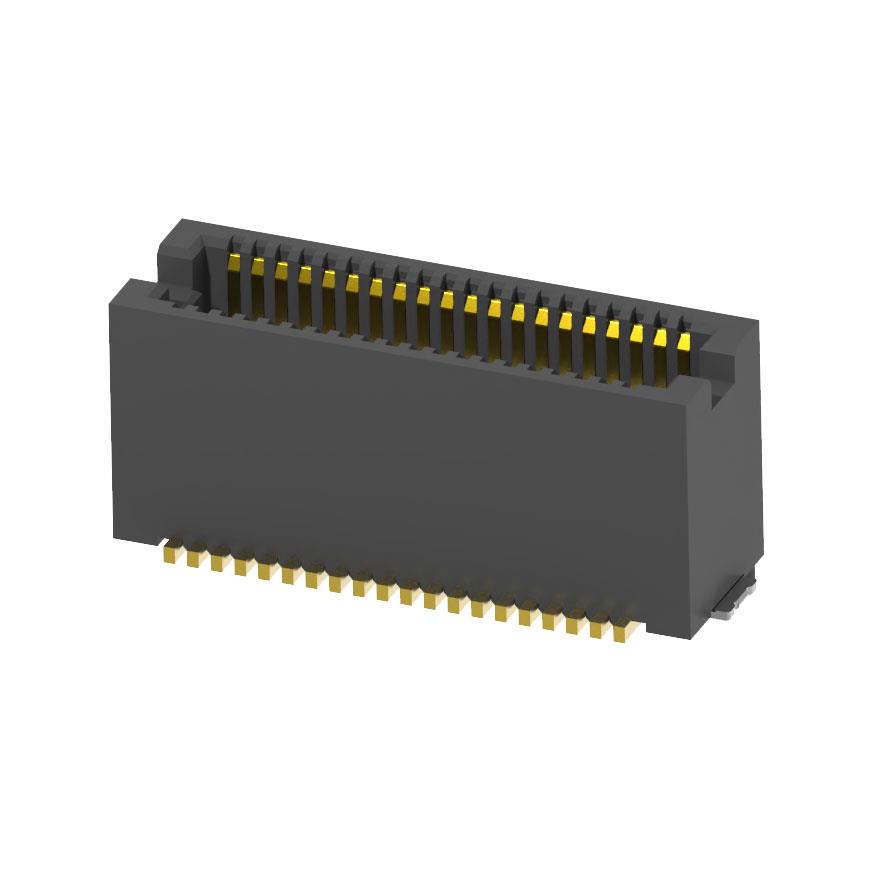

Specification	10132797-047130LF

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	1 µin
Height Above Board	0.209 in
Mated Stacking Height Options	5.3mm, 6mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.02 in

10132797 Series

Part	Contact Finish	Number of Rows	Pitch	Mated Stacking Height	Number of Positions	Height Above Board	Contact Finish Thickness	Features	Connector Type	Mounting Type	Mated Stacking Height Options
Amphenol ICC (FCI) 10132797-031120LF	Gold	2	0.02 in	3 mm	30	0.091 in	1 µin	Board Guide	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-045110LF	Gold	2	0.02 in	5 mm	40	0.169 in	1 µin	Solder Retention	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-051130LF	Gold	2	0.02 in	3 mm	50	0.091 in	1 µin		Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-017120LF	Gold	2	0.02 in		10	0.209 in	1 µin	Board Guide	Outer Shroud Contacts Plug	Surface Mount	5.3mm 6mm
Amphenol ICC (FCI) 10132797-033120LF	Gold	2	0.02 in	4 mm	30	0.13 in	1 µin	Board Guide	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-065120LF	Gold	2	0.02 in	5 mm	60	0.169 in	1 µin	Board Guide	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-021130LF	Gold	2	0.02 in	3 mm	20	0.091 in	1 µin		Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-065100LF	Gold	2	0.02 in	5 mm	60	0.169 in	1 µin	Board Guide Solder Retention	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-055110LF	Gold	2	0.02 in	5 mm	50	0.169 in	1 µin	Solder Retention	Outer Shroud Contacts Plug	Surface Mount
Amphenol ICC (FCI) 10132797-053110LF	Gold	2	0.02 in	4 mm	50	0.13 in	1 µin	Solder Retention	Outer Shroud Contacts Plug	Surface Mount
