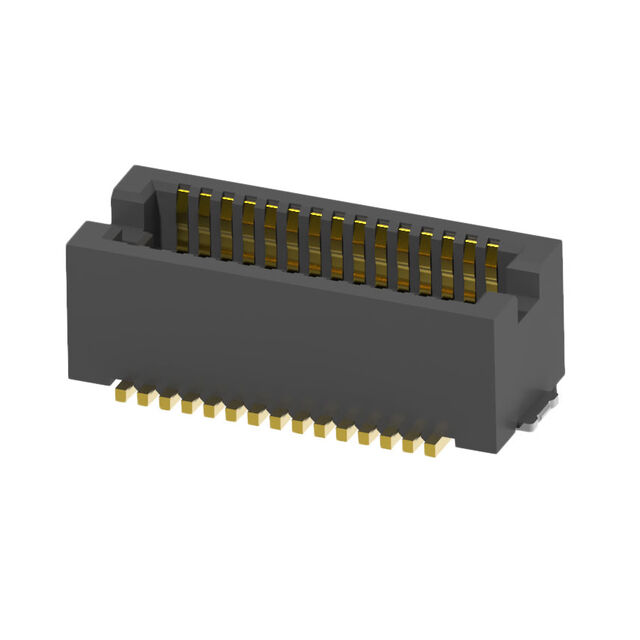

10132797-033120LF

Active

Amphenol ICC (FCI)

HEIGHT PLUG CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbergstak05 productpresentation Other Related Document gs-12-1298 Other Related Document +1

10132797-033120LF

Active

Amphenol ICC (FCI)

HEIGHT PLUG CONNECTOR

Deep-Dive with AI

Documentsbergstak05 productpresentation Other Related Document gs-12-1298 Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10132797-033120LF

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Features	Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights	4 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10132797 Series

Part	Connector Type	Features	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board
Amphenol ICC (FCI) 10132797-031120LF	Outer Shroud Contacts Plug	Board Guide	2	0.091 in	2.3 mm	3 mm	30	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132797-017120LF	Outer Shroud Contacts Plug	Board Guide	2			5.3 mm 6 mm	10	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	5.3 mm	0.209 in
Amphenol ICC (FCI) 10132797-033120LF	Outer Shroud Contacts Plug	Board Guide	2			4 mm	30	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-065120LF	Outer Shroud Contacts Plug	Board Guide	2			5 mm	60	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-021130LF	Outer Shroud Contacts Plug		2	0.091 in	2.3 mm	3 mm	20	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132797-065100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			5 mm	60	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-055110LF	Outer Shroud Contacts Plug	Solder Retention	2			5 mm	50	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-053110LF	Outer Shroud Contacts Plug	Solder Retention	2			4 mm	50	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-043100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			4 mm	40	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-045100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			5 mm	40	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.45
