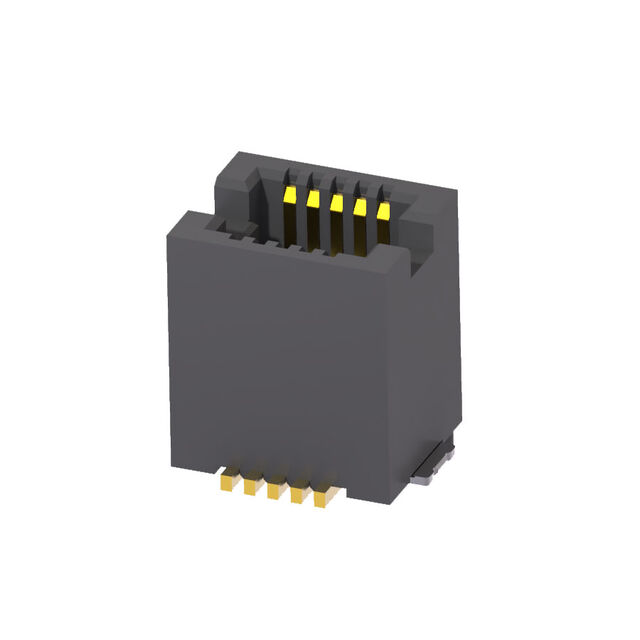

10132797-017120LF

Active

Amphenol ICC (FCI)

HEIGHT PLUG CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-1298 Other Related Document +1

10132797-017120LF

Active

Amphenol ICC (FCI)

HEIGHT PLUG CONNECTOR

Deep-Dive with AI

DocumentsDatasheet gs-12-1298 Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10132797-017120LF

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Features	Board Guide
Height Above Board	5.3 mm
Height Above Board	0.209 in
Mated Stacking Heights	5.3 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10132797 Series

Part	Connector Type	Features	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board
Amphenol ICC (FCI) 10132797-031120LF	Outer Shroud Contacts Plug	Board Guide	2	0.091 in	2.3 mm	3 mm	30	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132797-017120LF	Outer Shroud Contacts Plug	Board Guide	2			5.3 mm 6 mm	10	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	5.3 mm	0.209 in
Amphenol ICC (FCI) 10132797-033120LF	Outer Shroud Contacts Plug	Board Guide	2			4 mm	30	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-065120LF	Outer Shroud Contacts Plug	Board Guide	2			5 mm	60	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-021130LF	Outer Shroud Contacts Plug		2	0.091 in	2.3 mm	3 mm	20	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132797-065100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			5 mm	60	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-055110LF	Outer Shroud Contacts Plug	Solder Retention	2			5 mm	50	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
Amphenol ICC (FCI) 10132797-053110LF	Outer Shroud Contacts Plug	Solder Retention	2			4 mm	50	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-043100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			4 mm	40	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	3.3 mm	0.13 in
Amphenol ICC (FCI) 10132797-045100LF	Outer Shroud Contacts Plug	Board Guide Solder Retention	2			5 mm	40	Gold	0.025 µm	1 µin	0.5 mm	0.02 in	Surface Mount	4.3 mm	0.169 in
