846-027-559-602

Active

EDAC Inc.

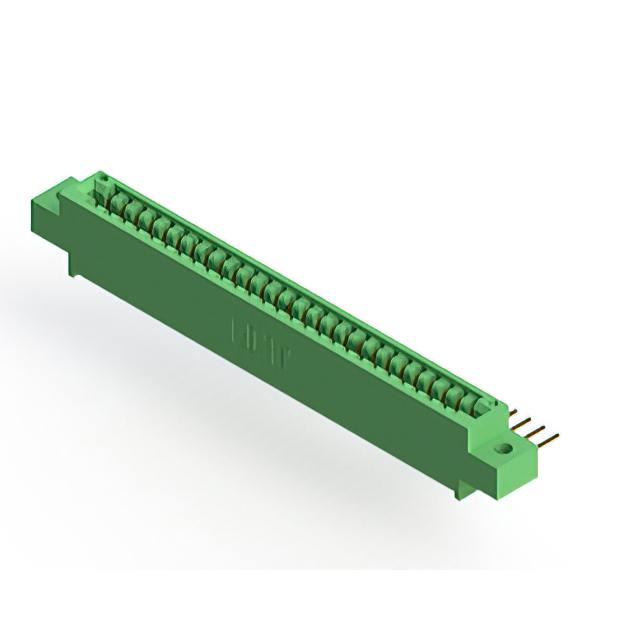

CONN EDGE SGL FMALE 27POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-027-559-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 27POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-027-559-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	27
Number of Positions/Bay/Row [custom]	27
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-027 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Read Out	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Gender	Material - Insulation	Contact Type	Pitch [x]	Pitch [x]	Flange Feature	Contact Material	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Card Type	Contact Finish	Color	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 846-027-520-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27
EDAC Inc. 846-027-520-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm		Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27
EDAC Inc. 846-027-558-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	27	Through Hole Right Angle	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27	3.25 mm	0.128 "
EDAC Inc. 846-027-500-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Floating Bobbin Flush Mount	Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27	2.95 mm	0.116 in
EDAC Inc. 846-027-559-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm		Copper Alloy	27	Through Hole Right Angle	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27
EDAC Inc. 846-027-521-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27	3.96 mm	0.156 in
EDAC Inc. 846-027-559-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	27	Through Hole Right Angle	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27
EDAC Inc. 846-027-559-602	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm		Copper Alloy	27	Through Hole Right Angle	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27			3.25 mm	0.128 in
EDAC Inc. 846-027-541-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27	3.25 mm	0.128 "
EDAC Inc. 846-027-522-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	1	10 Áin	0.25 Ám	Female	Diallyl Phthalate (DAP)	Cantilever	0.125 in	3.18 mm	Floating Bobbin Flush Mount	Copper Alloy	27	Through Hole	125 °C	-40 °C	1	Non Specified - Single Edge	Gold	Green	27	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 58.83
Newark	Each	1	$ 67.91
		100	$ 56.32
		250	$ 53.59
		500	$ 51.27
		1000	$ 44.88

Description

General part information

846-027 Series

27 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
