846-027-522-103
ActiveEDAC Inc.

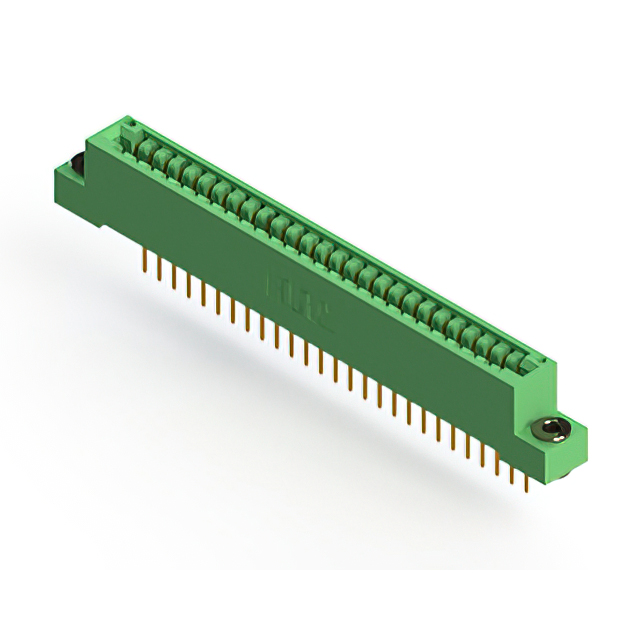

CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-027-522-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-027-522-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-027 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Material - Insulation | Contact Type | Pitch [x] | Pitch [x] | Flange Feature | Contact Material | Number of Positions | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Type | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 27 | Through Hole Right Angle | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Floating Bobbin Flush Mount | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 27 | Through Hole Right Angle | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 3.96 mm | 0.156 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 27 | Through Hole Right Angle | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 27 | Through Hole Right Angle | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Single | 1 | 10 Áin | 0.25 Ám | Female | Diallyl Phthalate (DAP) | Cantilever | 0.125 in | 3.18 mm | Floating Bobbin Flush Mount | Copper Alloy | 27 | Through Hole | 125 °C | -40 °C | 1 | Non Specified - Single Edge | Gold | Green | 27 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
