T520L157M006ATE012

Active

KEMET

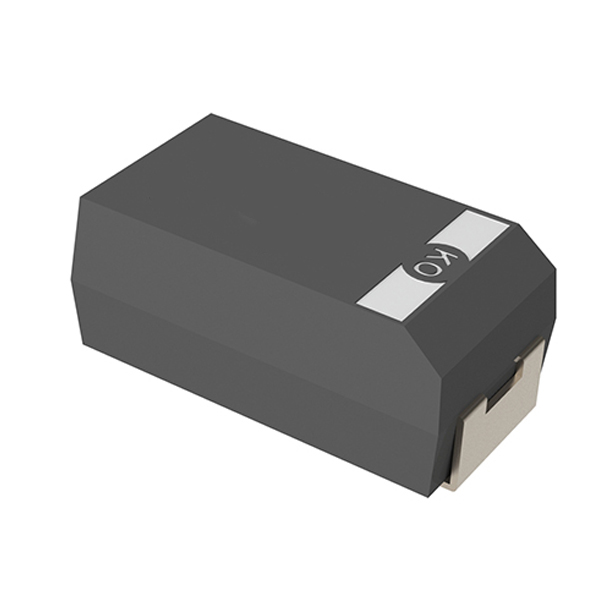

CAP TANT POLY 150UF 6.3V 2312

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 150UF 6.3V 2312

Technical Specifications

Parameters and characteristics for this part

Specification	T520L157M006ATE012

Capacitance	150 µF
ESR (Equivalent Series Resistance)	12 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	1.9 mm
Height - Seated (Max) [Max] [z]	0.075 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	L
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Features	Lifetime @ Temp.	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Tolerance	Type	Manufacturer Size Code	Package / Case	Package / Case
KEMET T520L157M006ATE025	General Purpose	2000 Hrs	Surface Mount	105 ░C	-55 °C	150 µF	1.9 mm	0.075 in	6.3 V	3.2 mm	6 mm	0.236 in	0.126 "	25 mOhm	20 %	Molded	L	6032 Metric	2312
KEMET T520L337M2R5ATE012	General Purpose	2000 Hrs	Surface Mount	105 ░C	-55 °C	330 µF	1.9 mm	0.075 in	2.5 V	3.2 mm	6 mm	0.236 in	0.126 "	12 mOhm	20 %	Molded	L	6032 Metric	2312
KEMET T520L157M006ATE012	General Purpose	2000 Hrs	Surface Mount	105 ░C	-55 °C	150 µF	1.9 mm	0.075 in	6.3 V	3.2 mm	6 mm	0.236 in	0.126 "	12 mOhm	20 %	Molded	L	6032 Metric	2312
KEMET T520L337M2R5ATE025	General Purpose	2000 Hrs	Surface Mount	105 ░C	-55 °C	330 µF	1.9 mm	0.075 in	2.5 V	3.2 mm	6 mm	0.236 in	0.126 "	25 mOhm	20 %	Molded	L	6032 Metric	2312

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.07
Newark	Each (Supplied on Cut Tape)	1	$ 1.38

General part information

150 µF Molded Tantalum Polymer Capacitor 6.3 V 2312 (6032 Metric) 12mOhm @ 100kHz
