T520L157M006ATE025

Active

KEMET

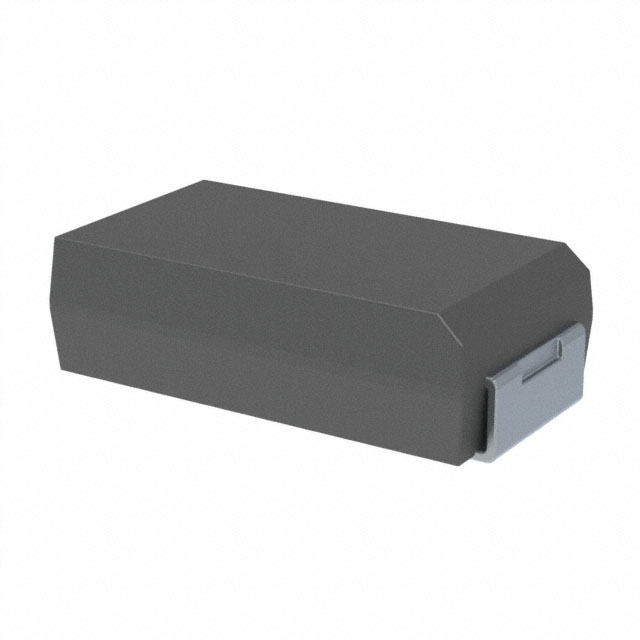

TANTALUM CAPACITORS - POLYMER 6.3V 150UF 2312 20% ESR=25MOHMS

T520L157M006ATE025

Active

KEMET

TANTALUM CAPACITORS - POLYMER 6.3V 150UF 2312 20% ESR=25MOHMS

Description Specifications Series Pricing CAD Documents

Description

General part information

T520 Series

150 µF Molded Tantalum Polymer Capacitor 6.3 V 2312 (6032 Metric) 25mOhm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

Specification	T520L157M006ATE025

Capacitance	150 µF
ESR (Equivalent Series Resistance)	25 mOhm
Features	General Purpose
Height - Seated (Max)	0.075 in
Lifetime	2000 Hrs
Manufacturer Size Code	L
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	2312 (6032 Metric)
Size / Dimension Length	0.236 in
Size / Dimension Width	0.126 in
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

T520 Series

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Width	Features	Capacitance	Package / Case	Mounting Type	Manufacturer Size Code	Tolerance	Lifetime	Type	Package Diameter	Package Name
KEMET T520U336M008ATE070	70 mOhm	8 VDC	0.059 in	-55 °C	105 °C	0.236 in	0.126 in	General Purpose	33 µF	2312 (6032 Metric)	Surface Mount	U	20 %	2000 Hrs	Molded
KEMET T520V687M006ATE025	25 mOhm	6.3 V	0.075 in	-55 °C	105 °C	0.287 in	0.169 in	General Purpose	680 µF	2917 (7343 Metric)	Surface Mount	V	20 %	2000 Hrs	Molded
KEMET T520D337M006ANE025	25 mOhm	6.3 V	0.122 in	-55 °C	105 °C	0.287 in	0.169 in	General Purpose	330 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded
KEMET T520D107M010ATE0807280	80 mOhm	10 V	0.122 in	-55 °C	105 °C	0.287 in	0.169 in	General Purpose	100 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded
KEMET T520B227M2R5ATE035	35 mOhm	2.5 V	0.079 in	-55 °C	105 °C	0.138 in	0.11 in	General Purpose	220 µF	1411 (3528 Metric)	Surface Mount	B	20 %	2000 Hrs	Molded	3528 mm	1411
KEMET T520T227M2R5ATE030	30 mOhm	2.5 V	0.047 in	-55 °C	105 °C	0.138 in	0.11 in	General Purpose	220 µF	1411 (3528 Metric)	Surface Mount	T	20 %	1000 Hrs	Molded	3528 mm	1411
KEMET T520L157M006ATE025	25 mOhm	6.3 V	0.075 in	-55 °C	105 °C	0.236 in	0.126 in	General Purpose	150 µF	2312 (6032 Metric)	Surface Mount	L	20 %	2000 Hrs	Molded
KEMET T520V157M004ATE009	9 mOhm	4 V	0.075 in	-55 °C	105 °C	0.287 in	0.169 in	General Purpose	150 µF	2917 (7343 Metric)	Surface Mount	V	20 %	2000 Hrs	Molded
KEMET T520D227M010ATE0257280	25 mOhm	10 V	0.122 in	-55 °C	105 °C	0.287 in	0.169 in	General Purpose	220 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded
KEMET T520U227M2R5ATE055	55 mOhm	2.5 V	0.059 in	-55 °C	105 °C	0.236 in	0.126 in	General Purpose	220 µF	2312 (6032 Metric)	Surface Mount	U	20 %	2000 Hrs	Molded
