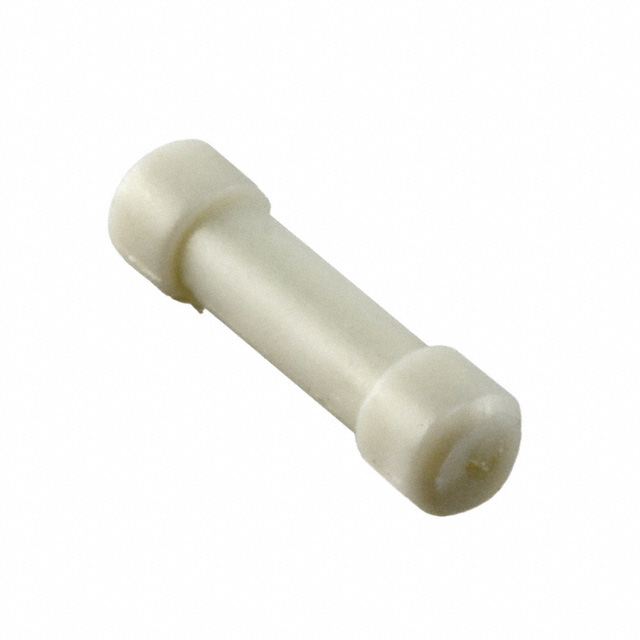

MX19000XD1

Active

JAE Electronics

DUMMY PLUG

Search across all available documentation for this part.

Active

JAE Electronics

DUMMY PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MX19000XD1

Accessory Type	Polarizing Device (Key, Plug, Post)
For Use With/Related Products	MX19 Series

Part	Connector Type	Number of Positions	Color	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Note	Insulation Material	Features	Mounting Type	Number of Rows	For Use With/Related Products	Accessory Type
JAE Electronics MX19002S51	Receptacle	2	Black	Female Socket	Crimp	0.098 in	2.5 mm	Latch Lock	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19000XD1														MX19 Series	Polarizing Device (Key Plug Post)
JAE Electronics MX19004S51	Receptacle	4	Black	Female Socket	Crimp	0.098 in	2.5 mm	Latch Lock	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19002P52	Plug	2	Gray	Male Pin	Crimp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19002P51	Plug	2	Black	Male Pin	Crimp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19004P52	Plug	4	Gray	Male Pin	Crimp and Clamp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Polarizing Device (Key, Plug, Post) For MX19 Series

Technical documentation and resources
