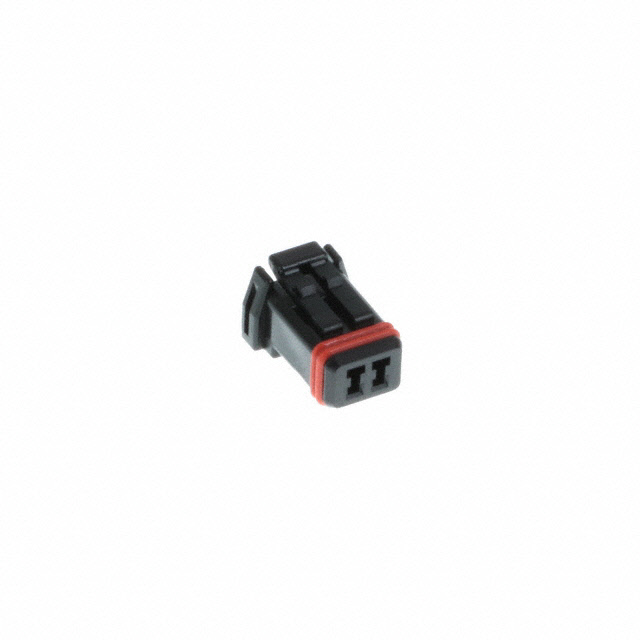

MX19002S51

Active

JAE Electronics

CONN RCPT HSG 2POS 2.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 2POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX19002S51

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Connector Type	Number of Positions	Color	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Note	Insulation Material	Features	Mounting Type	Number of Rows	For Use With/Related Products	Accessory Type
JAE Electronics MX19002S51	Receptacle	2	Black	Female Socket	Crimp	0.098 in	2.5 mm	Latch Lock	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19000XD1														MX19 Series	Polarizing Device (Key Plug Post)
JAE Electronics MX19004S51	Receptacle	4	Black	Female Socket	Crimp	0.098 in	2.5 mm	Latch Lock	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19002P52	Plug	2	Gray	Male Pin	Crimp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19002P51	Plug	2	Black	Male Pin	Crimp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1
JAE Electronics MX19004P52	Plug	4	Gray	Male Pin	Crimp and Clamp	0.098 in	2.5 mm	Latch Holder	Contacts Not Included	Polybutylene Terephthalate (PBT)	Waterproof	Free Hanging (In-Line)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
