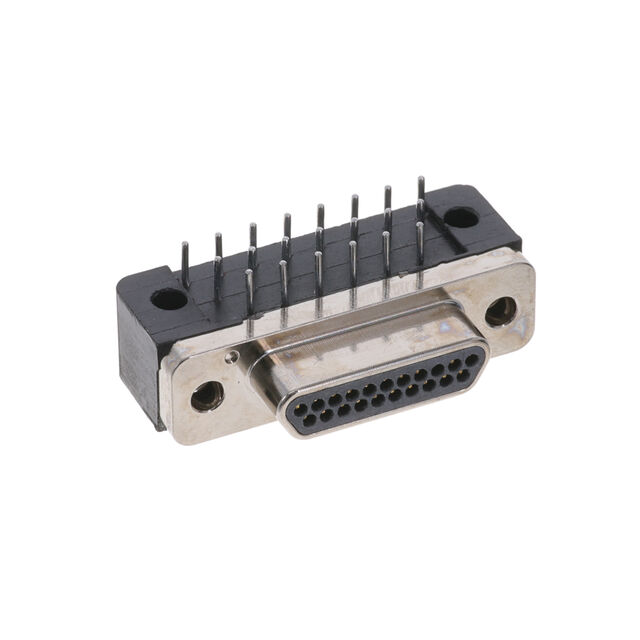

M83513/10-C01NN

Active

ITT Cannon, LLC

D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 21 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

M83513/10-C01NN

Active

ITT Cannon, LLC

D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 21 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/10-C01NN

Backset Spacing	3.3 mm
Backset Spacing	0.13 in
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	600 V

M83513/10 Series

Part	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Type	Contact Finish	1st Connector	Shielding	Contact Type	Number of Rows	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Material	Flange Feature	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Shell Material, Finish	Voltage Rating	Connector Type	Termination	Current Rating (Amps)	Backset Spacing	Backset Spacing	Primary Material
ITT Cannon, LLC M83513/10-D03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded
ITT Cannon, LLC M83513/10-C01NN					Gold			Signal	2	21	0.043	0.05	Liquid Crystal Polymer (LCP)	Copper Alloy	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	-55 °C	125 °C	D-Type Micro-D	Aluminum Electroless Nickel Plated	600 V	Male Pins Plug	Solder	3 A	3.3 mm	0.13 in	Metal
ITT Cannon, LLC M83513/10-C02NP	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			21
ITT Cannon, LLC M83513/10-F03CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			37
ITT Cannon, LLC M83513/10-D02CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded
ITT Cannon, LLC M83513/10-B03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			15
ITT Cannon, LLC M83513/10-E02NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			31
ITT Cannon, LLC M83513/10-A03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			9
ITT Cannon, LLC M83513/10-A02CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			9
ITT Cannon, LLC M83513/10-D02NP		50 µin	1.27 µm		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 181.21
		1	$ 838.29
		10	$ 167.92
		25	$ 161.88
		50	$ 160.67
Newark	Each	5	$ 220.50
		10	$ 178.22
		10	$ 210.00
		25	$ 204.00
		25	$ 171.05
		50	$ 161.48
		50	$ 192.00
		100	$ 159.09

Description

General part information

M83513/10 Series

21 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
