M83513/10-E02NN

Active

ITT Cannon, LLC

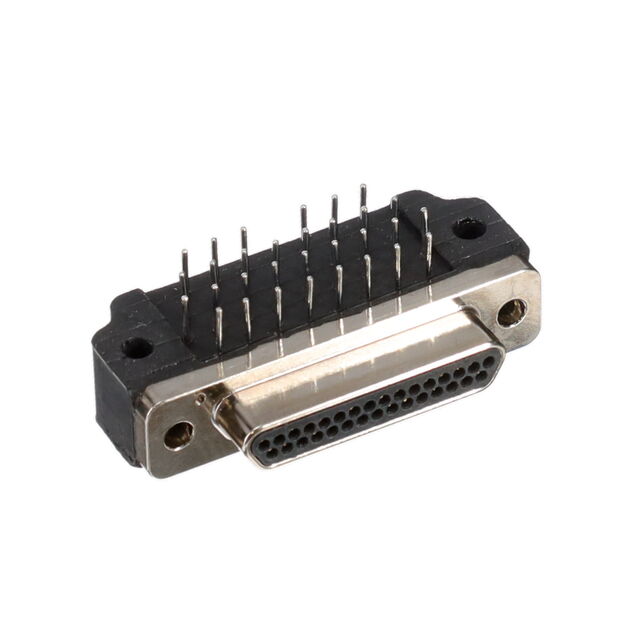

D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 31 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

M83513/10-E02NN

Active

ITT Cannon, LLC

D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 31 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/10-E02NN

1st Connector	Plug, Male Pins
2nd Connector	Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Number of Positions	31
Shielding	Unshielded
Type	D-Type, Micro-D

M83513/10 Series

Part	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Type	Contact Finish	1st Connector	Shielding	Contact Type	Number of Rows	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Material	Flange Feature	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Shell Material, Finish	Voltage Rating	Connector Type	Termination	Current Rating (Amps)	Backset Spacing	Backset Spacing	Primary Material
ITT Cannon, LLC M83513/10-D03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded
ITT Cannon, LLC M83513/10-C01NN					Gold			Signal	2	21	0.043	0.05	Liquid Crystal Polymer (LCP)	Copper Alloy	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	-55 °C	125 °C	D-Type Micro-D	Aluminum Electroless Nickel Plated	600 V	Male Pins Plug	Solder	3 A	3.3 mm	0.13 in	Metal
ITT Cannon, LLC M83513/10-C02NP	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			21
ITT Cannon, LLC M83513/10-F03CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			37
ITT Cannon, LLC M83513/10-D02CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded
ITT Cannon, LLC M83513/10-B03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			15
ITT Cannon, LLC M83513/10-E02NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			31
ITT Cannon, LLC M83513/10-A03NN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			9
ITT Cannon, LLC M83513/10-A02CN	Individual Wire Leads	50 µin	1.27 µm	D-Type Micro-D	Gold	Plug Male Pins	Unshielded			9
ITT Cannon, LLC M83513/10-D02NP		50 µin	1.27 µm		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 215.68
		1	$ 1085.26
		10	$ 199.86
		25	$ 192.67
		50	$ 191.23
Newark	Each	5	$ 220.50
		10	$ 212.12
		10	$ 210.00
		25	$ 204.00
		25	$ 203.58
		50	$ 192.00
		50	$ 192.19
		100	$ 189.34

Description

General part information

M83513/10 Series

D-Sub Cable Assembly D-Type, Micro-D Plug, Male Pins to Individual Wire Leads Unshielded

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
