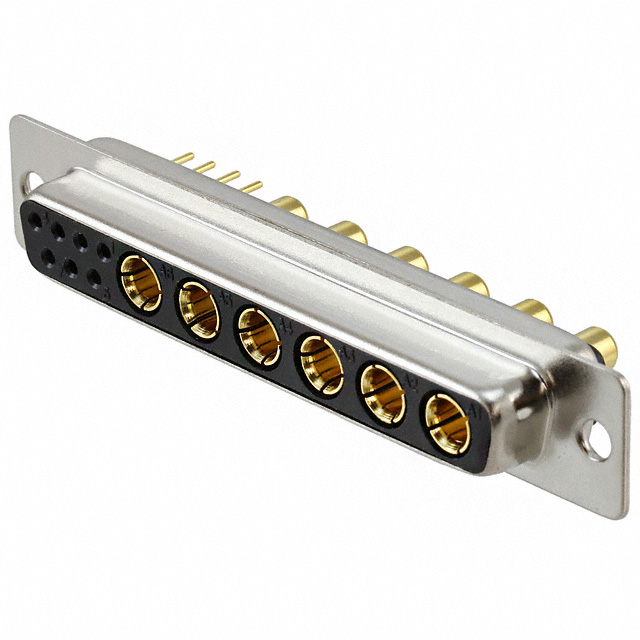

681M13W6203L001
ActiveCOMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DC-13W6, 7 CONTACTS, RECEPTACLE, 6, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
681M13W6203L001
ActiveCOMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DC-13W6, 7 CONTACTS, RECEPTACLE, 6, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 681M13W6203L001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 13 |
| Number of Positions [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W6, 4 (DC, C) |
| Termination | Solder |
681M13W Series
| Part | Contact Finish Thickness | Dielectric Material | Number of Rows | Flange Feature | Connector Type | Contact Material | Contact Finish | Material Flammability Rating | Mounting Type | Features | Number of Positions [custom] | Number of Positions [custom] | Shell Material, Finish | Color | Termination | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Contact Type | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | Housing/Shell (Unthreaded) | Male Pins Plug | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | Grounding Indents | 10 | 3 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 155 °C | -55 °C | 13C3 13W3 B DB | 3 | Combo D-Sub | Signal and Power | ||
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | 4-40 Board Side | Male Pins Plug | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | Board Lock Grounding Indents | 10 | 3 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13C3 13W3 B DB | 3 | Combo D-Sub | Signal and Power | 250 VDC | |
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | 6 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13W6 4 (DC C) | Combo D-Sub | Signal and Power | 13 | ||||
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | Housing/Shell (Unthreaded) | Male Pins Plug | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | Grounding Indents | 6 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13W6 4 (DC C) | Combo D-Sub | Signal and Power | 13 | |||
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | 4-40 Board Side | Receptacle Female Sockets | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | 10 | 3 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13C3 13W3 B DB | 3 | Combo D-Sub | Signal and Power | 250 VDC | ||
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | 4-40 Board Side | Receptacle Female Sockets | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | 10 | 3 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13C3 13W3 B DB | 3 | Combo D-Sub | Signal and Power | 250 VDC | ||
MH Connectors | Flash | Polybutylene Terephthalate (PBT) | 2 | 4-40 Board Side | Male Pins Plug | Copper Alloy | Gold | UL94 V-0 | Panel Mount Through Hole | Board Lock Grounding Indents | 10 | 3 | Nickel Plated Steel | Black | Solder | 5 A 40 A | 125 °C | -55 °C | 13C3 13W3 B DB | 3 | Combo D-Sub | Signal and Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
681M13W Series
The 681M series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 12 industry standard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4.
