Description

General part information

681M13W Series

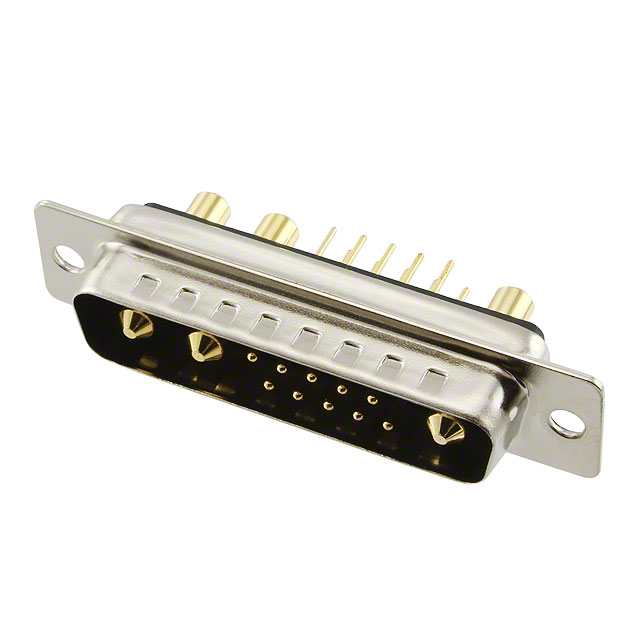

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	681M13W3103L001

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	40A, 5A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	10
Number of Positions (Power)	3
Number of Positions (Total)	13
Number of Rows	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Part Code	13C3, 13W3
Shell Material	Steel
Shell Size	3
Termination	Solder

681M13W Series

Part	Shell Size	Connector Layout	Part Code	Features	Connector Style	Shell Material	Finish	Contact Finish	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Rows	Termination	Connector Type	Mounting Type	Flange Feature	Contact Type	Material Flammability Rating	Current Rating Options	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Dielectric Material	Contact Form	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating (Minimum)	Current Rating	Current Rating (Maximum)	Voltage Rating
NorComp Inc. 681M13W3103L001	3	B DB	13C3 13W3	Grounding Indents	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Male Pins Plug	Panel Mount Through Hole	Housing Shell (Unthreaded)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	155 °C	-55 °C
NorComp Inc. 681M13W3203L001	3	B DB	13C3 13W3		Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Female Sockets Receptacle	Panel Mount Through Hole	Housing Shell (Unthreaded)	Power Signal	UL94 V-0	20/40A 3A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy		155 °C	-55 °C	20 A	3 A	40 A
NorComp Inc. 681M13W3103L141	3	B DB	13C3 13W3	Board Lock Grounding Indents	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Male Pins Plug	Panel Mount Through Hole	Board Side (4-40)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C				250 V
NorComp Inc. 681M13W6203L001	4	C DC	13W6		Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Female Sockets Receptacle	Panel Mount Through Hole	Housing Shell (Unthreaded)	Power Signal	UL94 V-0	40A 5A	6	13	7	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C
NorComp Inc. 681M13W6103L001	4	C DC	13W6	Grounding Indents	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Male Pins Plug	Panel Mount Through Hole	Housing Shell (Unthreaded)	Power Signal	UL94 V-0	40A 5A	6	13	7	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C
NorComp Inc. 681M13W3203L141	3	B DB	13C3 13W3	Board Lock	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Female Sockets Receptacle	Panel Mount Through Hole	Board Side (4-40)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C				250 V
NorComp Inc. 681M13W3203L151	3	B DB	13C3 13W3	Board Lock	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Female Sockets Receptacle	Panel Mount Through Hole	Board Side (4-40)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C				250 V
NorComp Inc. 681M13W3203L111	3	B DB	13C3 13W3		Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Female Sockets Receptacle	Panel Mount Through Hole	Board Side (4-40)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C				250 V
NorComp Inc. 681M13W3103L051	3	B DB	13C3 13W3	Board Lock Grounding Indents	Combo D-Sub	Steel	Nickel Plated	Gold	Flash	Flash	2	Solder	Male Pins Plug	Panel Mount Through Hole	Board Side (4-40)	Power Signal	UL94 V-0	40A 5A	3	13	10	Polybutylene Terephthalate (PBT)	Machined	Copper Alloy	Black	125 °C	-55 °C
