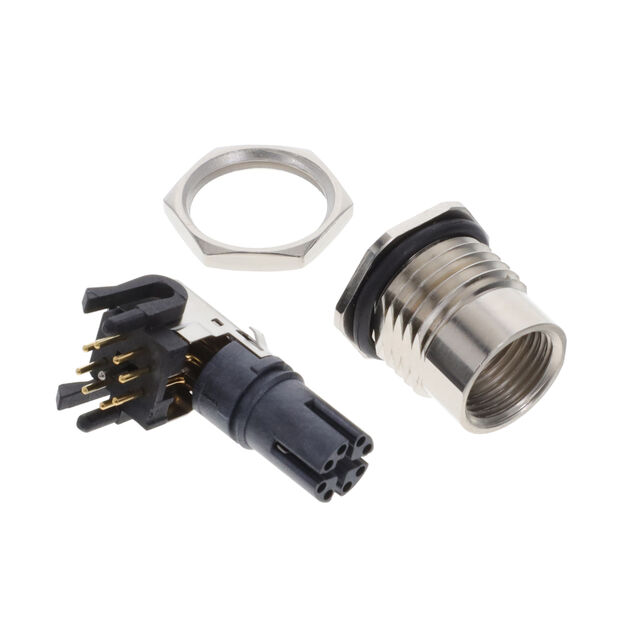

MSXS-08PFFR-SF7002
ActiveAmphenol LTW
M SERIES, M12, 0.5A, 08 PINS, RE
Deep-Dive with AI
Search across all available documentation for this part.
MSXS-08PFFR-SF7002
ActiveAmphenol LTW
M SERIES, M12, 0.5A, 08 PINS, RE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSXS-08PFFR-SF7002 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
MSXS-08PFFR Series
| Part | Shielding | Insert Material | Features | Contact Material | Number of Positions | Termination | Voltage Rating | Mounting Type | Shell Finish | Shell Material | Primary Material | Orientation | Color | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Ingress Protection | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Shielded | Thermoplastic | Board Guide | Copper Alloy | 8 | Solder | 30 VDC | Through Hole Right Angle | Nickel | Zinc Alloy | Metal | X | Silver | Gold | -40 °C | 105 ░C | M12-8 | IP67 - Dust Tight Waterproof | 0.5 A | Receptacle Female Sockets |
Amphenol LTW | Shielded | Thermoplastic | Board Guide | Copper Alloy | 8 | Solder | 30 VDC | Through Hole Right Angle | Nickel | Zinc Alloy | Metal | X | Silver | Gold | -40 °C | 105 ░C | M12-8 | IP67 - Dust Tight Waterproof | 0.5 A | Receptacle Female Sockets |
Amphenol LTW | Shielded | Thermoplastic | Board Guide | Copper Alloy | 8 | Solder | 30 VDC | Through Hole Right Angle | Nickel | Zinc Alloy | Metal | X | Silver | Gold | -40 °C | 105 ░C | M12-8 | IP67 - Dust Tight Waterproof | 0.5 A | Receptacle Female Sockets |
Amphenol LTW | Shielded | Thermoplastic | Board Guide | Copper Alloy | 8 | Solder | 30 VDC | Through Hole Right Angle | Nickel | Zinc Alloy | Metal | X | Silver | Gold | -40 °C | 105 ░C | M12-8 | IP67 - Dust Tight Waterproof | 0.5 A | Receptacle Female Sockets |
Amphenol LTW | Shielded | Thermoplastic | Board Guide | Copper Alloy | 8 | Solder | 30 VDC | Through Hole Right Angle | Nickel | Zinc Alloy | Metal | X | Silver | Gold | -40 °C | 105 ░C | M12-8 | IP67 - Dust Tight Waterproof | 0.5 A | Receptacle Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.75 | |
| 10 | $ 16.25 | |||
| 25 | $ 15.40 | |||
| 50 | $ 15.18 | |||
| 100 | $ 13.39 | |||
| 250 | $ 12.50 | |||
| 500 | $ 12.23 | |||
Description
General part information
MSXS-08PFFR Series
8 Position Circular Connector Receptacle, Female Sockets Solder
