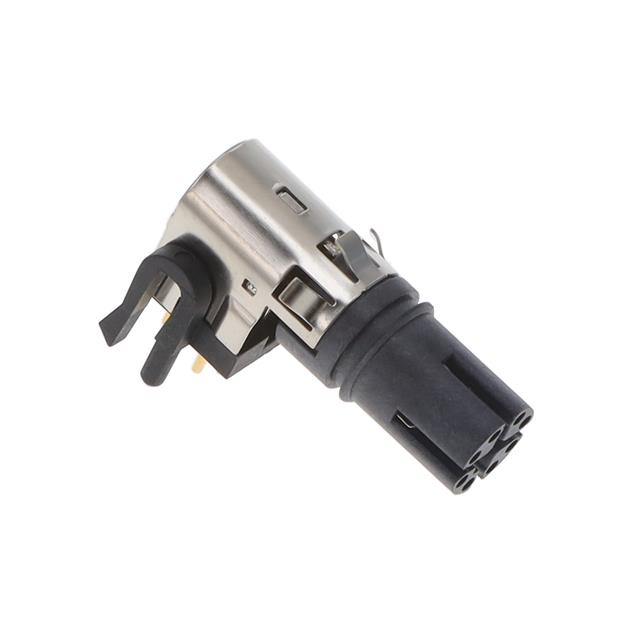

MSXS-08PFFR-EE0002
ActiveAmphenol LTW
M12 X CODE 90 DIP, SHIELDED, F C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSXS-08PFFR-EE0002 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.56 | |
| 10 | $ 7.59 | |||
| 25 | $ 7.30 | |||
| 45 | $ 7.00 | |||
| 90 | $ 6.85 | |||
Description
General part information
MSXS-08PFFR Series
8 Position Circular Connector Receptacle, Female Sockets Solder
