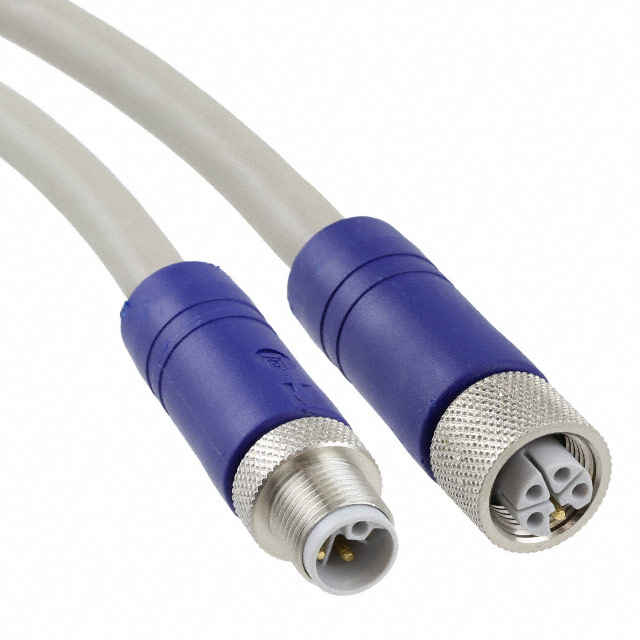

RST 5L-RKT 5L-949/0,3 M

Active

LUMBERG AUTOMATION

CIRC CBL 5POS RCPT TO PLUG 0.98'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RST 5L-RKT 5L-949/0,3 M

Active

LUMBERG AUTOMATION

CIRC CBL 5POS RCPT TO PLUG 0.98'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RST 5L-RKT 5L-949/0,3 M

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	L
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Gray
Ingress Protection	IP69K, IP65, IP67
Shielding	Unshielded
Usage	Industrial Environments

RST Series

Part	Shielding	1st Connector Shell Size - Insert	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Orientation [custom]	2nd Connector Mounting Type	2nd Connector Type	Cable Material	1st Connector Gender	2nd Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Number of Positions Loaded	Color	Ingress Protection	1st Connector Type	1st Connector Number of Positions	2nd Connector Gender	Assembly Configuration	2nd Connector Number of Positions	Usage	Cable Type	1st Connector Orientation	2nd Connector Orientation	Length	Length
LUMBERG AUTOMATION RST 4-RKT 4-633/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug	Polyvinyl Chloride (PVC)	Male Pins	All	2 m	6.56 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5-RKT 5-228/2M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round	A
LUMBERG AUTOMATION RST 4-RKWT 4-225/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 4-RKWT 4-633/1M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyvinyl Chloride (PVC)	Male Pins	All	1 m	3.28 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5L-RKT 5L-949/0,3 M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Gray	IP65 IP67 IP69K	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round		L
LUMBERG AUTOMATION RST 4-RKWT 4-225/1M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyurethane (PUR)	Male Pins	All	1 m	3.28 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5L-RKT 5L-949/0,6 M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Gray	IP65 IP67 IP69K	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round		L	600 mm	1.97 ft
LUMBERG AUTOMATION RST 4-RKWT 4-633/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyvinyl Chloride (PVC)	Male Pins	All	2 m	6.56 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5-RKT 5-228/5M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Black	IP67 NEMA 6	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round	A
LUMBERG AUTOMATION RST 4-RKT 4-225/2M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.04
		10	$ 62.44
		25	$ 60.04
		50	$ 58.04
		100	$ 54.83

Description

General part information

RST Series

Circular Cable Assembly Unshielded 0.98' (300.00mm)
