RST 4-RKT 4-633/2M

Active

LUMBERG AUTOMATION

SENSOR CABLE, M12 PLUG, M12 RECEPTACLE, 4 POSITIONS, 2 M, 6.56 FT, RST-RKT SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RST 4-RKT 4-633/2M

Active

LUMBERG AUTOMATION

SENSOR CABLE, M12 PLUG, M12 RECEPTACLE, 4 POSITIONS, 2 M, 6.56 FT, RST-RKT SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RST 4-RKT 4-633/2M

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	NEMA 6, IP67
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

RST Series

Part	Shielding	1st Connector Shell Size - Insert	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Orientation [custom]	2nd Connector Mounting Type	2nd Connector Type	Cable Material	1st Connector Gender	2nd Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Number of Positions Loaded	Color	Ingress Protection	1st Connector Type	1st Connector Number of Positions	2nd Connector Gender	Assembly Configuration	2nd Connector Number of Positions	Usage	Cable Type	1st Connector Orientation	2nd Connector Orientation	Length	Length
LUMBERG AUTOMATION RST 4-RKT 4-633/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug	Polyvinyl Chloride (PVC)	Male Pins	All	2 m	6.56 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5-RKT 5-228/2M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round	A
LUMBERG AUTOMATION RST 4-RKWT 4-225/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 4-RKWT 4-633/1M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyvinyl Chloride (PVC)	Male Pins	All	1 m	3.28 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5L-RKT 5L-949/0,3 M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Gray	IP65 IP67 IP69K	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round		L
LUMBERG AUTOMATION RST 4-RKWT 4-225/1M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyurethane (PUR)	Male Pins	All	1 m	3.28 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5L-RKT 5L-949/0,6 M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Gray	IP65 IP67 IP69K	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round		L	600 mm	1.97 ft
LUMBERG AUTOMATION RST 4-RKWT 4-633/2M	Unshielded	M12	Free Hanging (In-Line)	M12	Keyed	Free Hanging (In-Line)	Plug Right Angle	Polyvinyl Chloride (PVC)	Male Pins	All	2 m	6.56 ft	All	Yellow	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round
LUMBERG AUTOMATION RST 5-RKT 5-228/5M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All			All	Black	IP67 NEMA 6	Receptacle	5	Female Sockets	Standard	5	Industrial Environments	Round	A
LUMBERG AUTOMATION RST 4-RKT 4-225/2M	Unshielded	M12	Free Hanging (In-Line)	M12		Free Hanging (In-Line)	Plug	Polyurethane (PUR)	Male Pins	All	2 m	6.56 ft	All	Black	IP67 NEMA 6	Receptacle	4	Female Sockets	Standard	4	Industrial Environments	Round	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.05
		10	$ 27.19
		25	$ 26.01
		50	$ 25.17
		100	$ 24.34
		250	$ 22.99
Newark	Each	1	$ 31.34
		5	$ 26.74

Description

General part information

RST Series

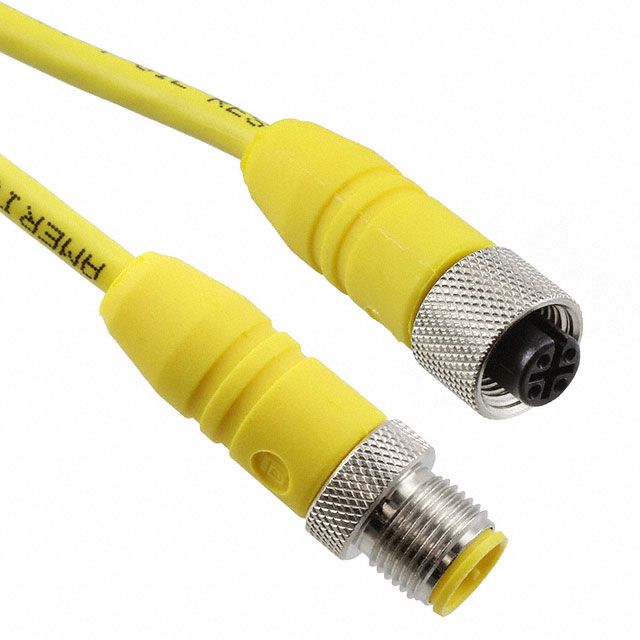

The RST 4-RKT 4-633/2M is a 2m Double-ended Cordset with 4-position M12 straight male to female connection. This sensor cable comes with a yellow PVC outer jacket, gold-plated over nickel CuZn contacts and yellow PUR housing/moulded body.
