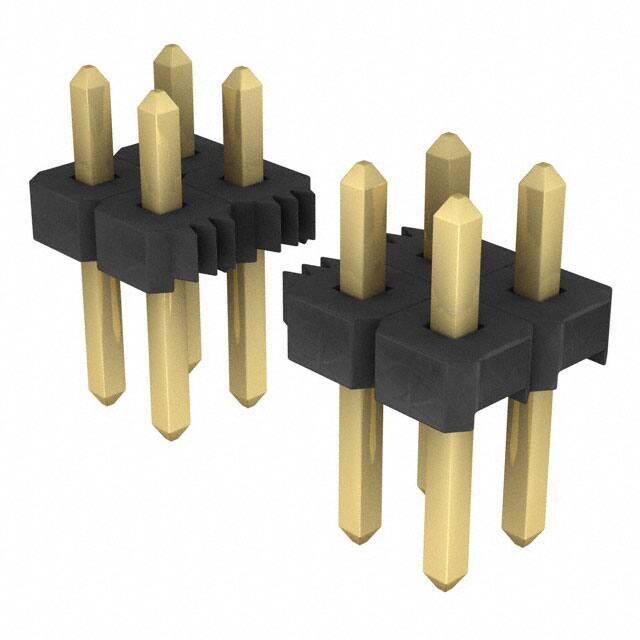

TLW-136-05-G-D
ActiveSamtec Inc.
CONN HEADER VERT 72POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
TLW-136-05-G-D
ActiveSamtec Inc.
CONN HEADER VERT 72POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLW-136-05-G-D |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 4.32 mm |
| Contact Length - Post | 0.17 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5.2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.06 in |
| Insulation Height [z] | 1.52 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.51 mm |
| Overall Contact Length | 0.335 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TLW-136 Series
| Part | Style | Contact Shape | Contact Finish - Mating | Contact Type | Termination | Mounting Type | Insulation Material | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Number of Positions | Fastening Type | Contact Material | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Color | Connector Type | Insulation Height | Insulation Height | Contact Finish - Post | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 7.62 mm | 0.3 in | 0.135 in | 3.43 mm | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | |||||||||||
Samtec Inc. | Board to Board Cable | Square | Male Pin | Solder | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 0.12 in | 3.05 mm | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.1 in | 2.54 mm | -55 °C | 105 ░C | Unshrouded | Black | Header | 0.197 in | 5 mm | Tin | 0.23 in | 5.84 mm | |||||||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 7.62 mm | 0.3 in | 0.135 in | 3.43 mm | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | Tin | 3 µin | 0.076 µm | ||||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 7.62 mm | 0.3 in | 0.135 in | 3.43 mm | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | |||||||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 8.51 mm | 0.335 in | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | Gold | 10 çin | 0.25 çm | Flash | 4.32 mm | 0.17 in | |||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 1 | 7.62 mm | 0.3 in | 0.135 in | 3.43 mm | 5.2 A | 36 | Push-Pull | Phosphor Bronze | All | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | Gold | 10 çin | 0.25 çm | Flash | |||||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole | Liquid Crystal Polymer (LCP) | 1 | 8.51 mm | 0.335 in | 5.2 A | 36 | Push-Pull | Phosphor Bronze | 0.06 in | 1.52 mm | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | Gold | 10 çin | 0.25 çm | Flash | 4.32 mm | 0.17 in | 35 | |||||||||
Samtec Inc. | Board to Board Cable | Square | Gold | Male Pin | Solder | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | 0.12 in | 3.05 mm | 5.2 A | 72 | Push-Pull | Phosphor Bronze | All | 0.1 in | 2.54 mm | -55 °C | 125 °C | Unshrouded | Black | Header | 0.197 in | 5 mm | Gold | 0.23 in | 5.84 mm | 10 çin | 0.25 çm | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.03 | |
| 10 | $ 10.20 | |||
| 25 | $ 9.64 | |||
| 50 | $ 9.29 | |||
| 100 | $ 6.86 | |||
| 500 | $ 6.04 | |||
| 1000 | $ 5.80 | |||
Description
General part information
TLW-136 Series
Connector Header Through Hole 72 position 0.100" (2.54mm)
