MAAD-000523-001SMB

Active

MACOM Technology Solutions

SAMPLE BOARD,SERIAL PARALLEL,4MM

Search across all available documentation for this part.

Active

MACOM Technology Solutions

SAMPLE BOARD,SERIAL PARALLEL,4MM

Technical Specifications

Parameters and characteristics for this part

Specification	MAAD-000523-001SMB

For Use With/Related Products	MAAD-000523
Frequency [Max]	6 GHz
Frequency [Min]	700 MHz
Supplied Contents	Board(s)
Type	Attenuator

Part	Frequency Range [Min]	Frequency Range [Max]	Attenuation Value [Max] [custom]	Attenuation Value [Min] [custom]	Impedance	Package / Case	Supplied Contents	Type	For Use With/Related Products	Frequency [Min]	Frequency [Max]

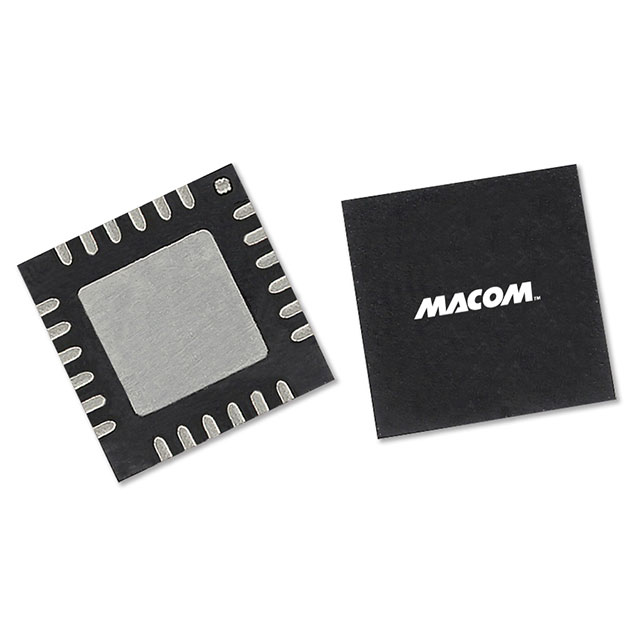

MACOM Technology Solutions MAAD-000523-TR1000	700 MHz	6 GHz	31.5 dB	0.5 dB	50 Ohms	24-VFQFN Exposed Pad
MACOM Technology Solutions MAAD-000523-001SMB							Board(s)	Attenuator	MAAD-000523	700 MHz	6 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 375.00

General part information

MAAD-000523 - Attenuator 700MHz ~ 6GHz Evaluation Board

Technical documentation and resources
