MAAD-000523-TR1000

Active

MACOM Technology Solutions

ATTENUATOR,SERIES PARALLEL 6BT,4

Search across all available documentation for this part.

Active

MACOM Technology Solutions

ATTENUATOR,SERIES PARALLEL 6BT,4

Technical Specifications

Parameters and characteristics for this part

Specification	MAAD-000523-TR1000

Attenuation Value [Max] [custom]	31.5 dB
Attenuation Value [Min] [custom]	0.5 dB
Frequency Range [Max]	6 GHz
Frequency Range [Min]	700 MHz
Impedance	50 Ohms

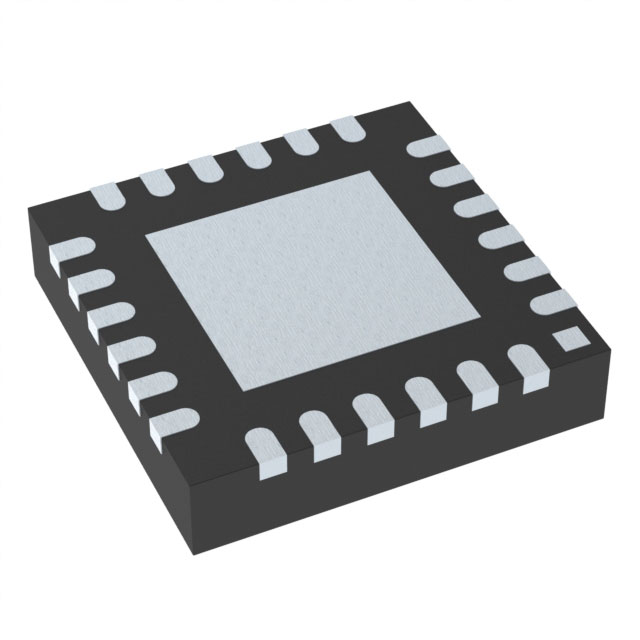

Package / Case	24-VFQFN Exposed Pad

Part	Frequency Range [Min]	Frequency Range [Max]	Attenuation Value [Max] [custom]	Attenuation Value [Min] [custom]	Impedance	Package / Case	Supplied Contents	Type	For Use With/Related Products	Frequency [Min]	Frequency [Max]
MACOM Technology Solutions MAAD-000523-TR1000	700 MHz	6 GHz	31.5 dB	0.5 dB	50 Ohms	24-VFQFN Exposed Pad
MACOM Technology Solutions MAAD-000523-001SMB							Board(s)	Attenuator	MAAD-000523	700 MHz	6 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 6.83

General part information

RF Attenuators 0.5dB ~ 31.5dB 700 MHz ~ 6 GHz 50 Ohms 24-VFQFN Exposed Pad

Technical documentation and resources

No documents available
