1415163

Active

Phoenix Contact

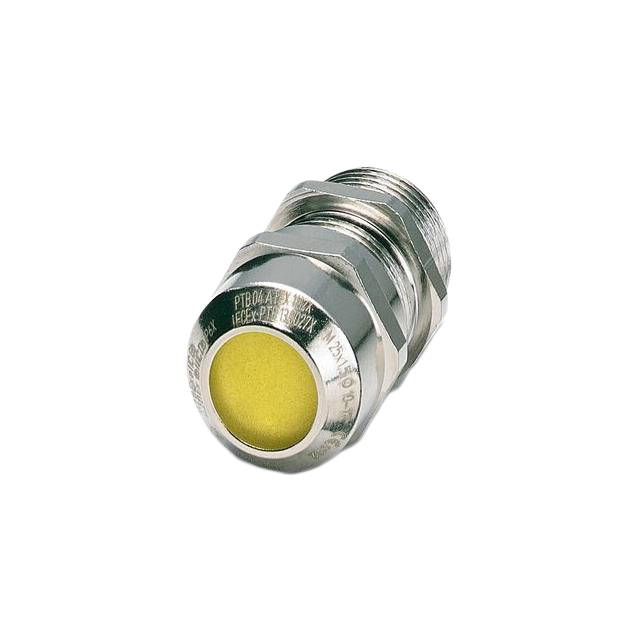

CABLE GLAND 6-13MM M20 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 6-13MM M20 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415163	G-ESISEC Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in	0.512 - 1.89 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm	13 - 48 mm
Outside Cable Diameter (Min)	-	13 - 21 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 - 34 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 - 1.339 in
Thread Length	0.472 in	0.472 - 0.591 in
Thread Length	12 mm	12 - 15 mm
Thread Size	M20	M50, M63, M20, M32
Type	Cable Gland	Cable Gland

CABLE GLAND 21-35MM M50 BRASS

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Color	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1415169	M50	35 mm	1.378 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	0.827 in	21 mm	IP66/IP68	Brass, Nickel Plated
Phoenix Contact 1415170	M63	48 mm	1.89 "	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	1.339 in		IP66/IP68	Brass, Nickel Plated	34 mm
Phoenix Contact 1415163	M20	13 mm	0.512 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.472 in	12 mm	Cable Gland	0.236 in		IP66/IP68	Brass, Nickel Plated	6 mm
Phoenix Contact 1415166	M32	21 mm	0.827 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	0.512 in	13 mm	IP66/IP68	Brass, Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20 Silver
