1415169

Active

Phoenix Contact

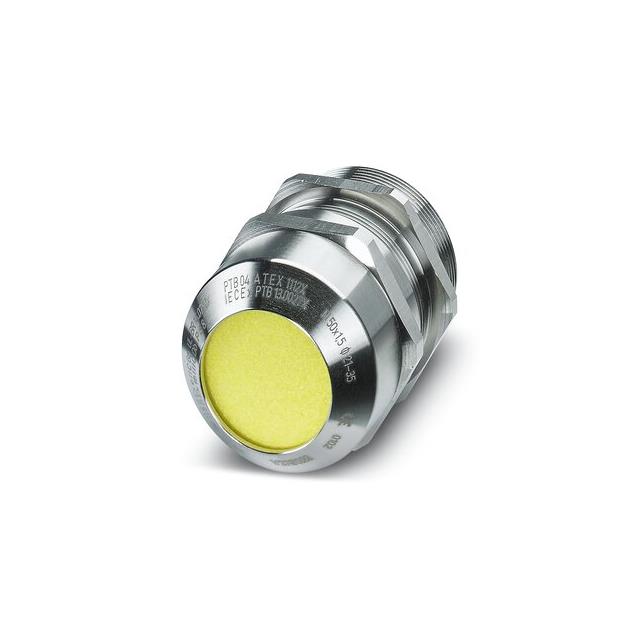

CABLE GLAND 21-35MM M50 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 21-35MM M50 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.89

General part information

Cable Gland Brass, Nickel Plated M50 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1415169	G-ESISEC Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm	13 - 48 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in	0.512 - 1.89 in
Outside Cable Diameter (Min)	21 mm	13 - 21 mm
Outside Cable Diameter (Min)	-	6 - 34 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.827 in	0.236 - 1.339 in
Thread Length	0.591 in	0.472 - 0.591 in
Thread Length	15 mm	12 - 15 mm
Thread Size	M50	M50, M63, M20, M32
Type	Cable Gland	Cable Gland

CABLE GLAND 21-35MM M50 BRASS

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Color	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1415169	M50	35 mm	1.378 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	0.827 in	21 mm	IP66/IP68	Brass, Nickel Plated
Phoenix Contact 1415170	M63	48 mm	1.89 "	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	1.339 in		IP66/IP68	Brass, Nickel Plated	34 mm
Phoenix Contact 1415163	M20	13 mm	0.512 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.472 in	12 mm	Cable Gland	0.236 in		IP66/IP68	Brass, Nickel Plated	6 mm
Phoenix Contact 1415166	M32	21 mm	0.827 in	-40 °C	75 ░C	O-Ring, Seal	Silver	0.591 in	15 mm	Cable Gland	0.512 in	13 mm	IP66/IP68	Brass, Nickel Plated
