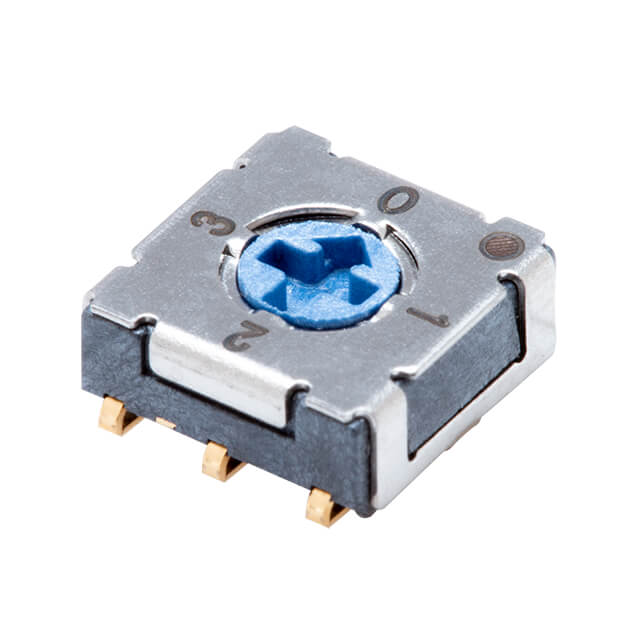

RDS-4S-7229-C-JSMT

Active

CUI Devices

ENCODING SWITCH; DEC/BCD; POS: 4; SMT; RCONT MAX: 100MΩ; LCP; IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDS-4S-7229-C-JSMT

Active

CUI Devices

ENCODING SWITCH; DEC/BCD; POS: 4; SMT; RCONT MAX: 100MΩ; LCP; IP67

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDS-4S-7229-C-JSMT

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Liquid Crystal Polymer (LCP)
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Features	IP67 - Dust Tight, Waterproof
Height Above Board	0.118 in
Height Above Board	3 mm
Length [x]	7.2 mm
Length [x]	0.283 "
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	J Lead
Voltage Rating	50 V
Washable	False

RDS-4S Series

Part	Contact Material	Actuator Type	Voltage Rating	Length [x]	Length [x]	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Termination Style	Features	Number of Positions	Mounting Type	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Height Above Board	Height Above Board	Circuit	Body Material	Contact Finish	Height Above Board [z]	Height Above Board [z]
CUI Devices RDS-4S-7229-C-SMT	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	Gull Wing	IP67 - Dust Tight Waterproof	4	Surface Mount	Flush Recessed	85 °C	-40 °C	100 mA	0.118 in	3 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-A-JSMT-TR	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	J Lead	IP67 - Dust Tight Waterproof	4	Surface Mount	Flush Recessed	85 °C	-40 °C	100 mA	0.118 in	3 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-S-SMT	Copper Alloy	Rotary with Shaft	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	Gull Wing	IP67 - Dust Tight Waterproof	4	Surface Mount	Raised	85 °C	-40 °C	100 mA	0.236 in	6 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-R-JSMT	Copper Alloy	Rotary with Shaft	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	J Lead	IP67 - Dust Tight Waterproof	4	Surface Mount	Raised	85 °C	-40 °C	100 mA	0.236 in	6 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-C-SMT-TR	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	Gull Wing	IP67 - Dust Tight Waterproof	4	Surface Mount	Flush Recessed	85 °C	-40 °C	100 mA	0.118 in	3 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-C-D	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	4	Through Hole	Flush Recessed	85 °C	-40 °C	100 mA			BCD	Liquid Crystal Polymer (LCP)	Gold	2.9 mm	0.114 "
CUI Devices RDS-4S-7229-R-D	Copper Alloy	Rotary with Shaft	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	4	Through Hole	Raised	85 °C	-40 °C	100 mA			BCD	Liquid Crystal Polymer (LCP)	Gold	5.9 mm	0.232 in
CUI Devices RDS-4S-7229-A-JSMT	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	J Lead	IP67 - Dust Tight Waterproof	4	Surface Mount	Flush Recessed	85 °C	-40 °C	100 mA	0.118 in	3 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-C-JSMT	Copper Alloy	Rotary for Tool	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	J Lead	IP67 - Dust Tight Waterproof	4	Surface Mount	Flush Recessed	85 °C	-40 °C	100 mA	0.118 in	3 mm	BCD	Liquid Crystal Polymer (LCP)	Gold
CUI Devices RDS-4S-7229-S-JSMT	Copper Alloy	Rotary with Shaft	50 V	7.2 mm	0.283 "	0.1 in	Full	2.54 mm	10000 Cycles	J Lead	IP67 - Dust Tight Waterproof	4	Surface Mount	Raised	85 °C	-40 °C	100 mA	0.236 in	6 mm	BCD	Liquid Crystal Polymer (LCP)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.17
		1	$ 3.17
		10	$ 2.66
		10	$ 2.66
		70	$ 2.26
		70	$ 2.26
		140	$ 2.13
		140	$ 2.13
		280	$ 2.02
		280	$ 2.02
		560	$ 1.91
		560	$ 1.91
		1050	$ 1.83
		1050	$ 1.83
		2520	$ 1.72
		2520	$ 1.72
		5040	$ 1.65
		5040	$ 1.65

Description

General part information

RDS-4S Series

Dip Switch BCD 4 Position Surface Mount Rotary for Tool Actuator 100mA 50VDC
