RDS-4S-7229-C-D
ActiveCUI Devices
SWITCH ROTARY DIP BCD 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDS-4S-7229-C-D
ActiveCUI Devices
SWITCH ROTARY DIP BCD 0.1A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDS-4S-7229-C-D |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Liquid Crystal Polymer (LCP) |
| Circuit | BCD |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 10000 Cycles |
| Features | IP67 - Dust Tight, Waterproof |
| Height Above Board [z] | 2.9 mm |
| Height Above Board [z] | 0.114 " |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 50 V |
| Washable | False |
RDS-4S Series
| Part | Contact Material | Actuator Type | Voltage Rating | Washable | Length [x] | Length [x] | Pitch [x] | Pitch | Pitch [x] | Electrical Life | Termination Style | Features | Number of Positions | Mounting Type | Actuator Level | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Height Above Board | Height Above Board | Circuit | Body Material | Contact Finish | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | Gull Wing | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Flush Recessed | 85 °C | -40 °C | 100 mA | 0.118 in | 3 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | J Lead | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Flush Recessed | 85 °C | -40 °C | 100 mA | 0.118 in | 3 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary with Shaft | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | Gull Wing | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Raised | 85 °C | -40 °C | 100 mA | 0.236 in | 6 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary with Shaft | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | J Lead | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Raised | 85 °C | -40 °C | 100 mA | 0.236 in | 6 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | Gull Wing | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Flush Recessed | 85 °C | -40 °C | 100 mA | 0.118 in | 3 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | PC Pin | IP67 - Dust Tight Waterproof | 4 | Through Hole | Flush Recessed | 85 °C | -40 °C | 100 mA | BCD | Liquid Crystal Polymer (LCP) | Gold | 2.9 mm | 0.114 " | |||
CUI Devices | Copper Alloy | Rotary with Shaft | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | PC Pin | IP67 - Dust Tight Waterproof | 4 | Through Hole | Raised | 85 °C | -40 °C | 100 mA | BCD | Liquid Crystal Polymer (LCP) | Gold | 5.9 mm | 0.232 in | |||
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | J Lead | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Flush Recessed | 85 °C | -40 °C | 100 mA | 0.118 in | 3 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary for Tool | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | J Lead | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Flush Recessed | 85 °C | -40 °C | 100 mA | 0.118 in | 3 mm | BCD | Liquid Crystal Polymer (LCP) | Gold | |||
CUI Devices | Copper Alloy | Rotary with Shaft | 50 V | 7.2 mm | 0.283 " | 0.1 in | Full | 2.54 mm | 10000 Cycles | J Lead | IP67 - Dust Tight Waterproof | 4 | Surface Mount | Raised | 85 °C | -40 °C | 100 mA | 0.236 in | 6 mm | BCD | Liquid Crystal Polymer (LCP) | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.70 | |
| 10 | $ 2.54 | |||
| 70 | $ 2.15 | |||
| 140 | $ 2.01 | |||
| 280 | $ 1.82 | |||
| 560 | $ 1.69 | |||
| 1050 | $ 1.56 | |||
| 2520 | $ 1.42 | |||
| 5040 | $ 1.36 | |||
Description
General part information
RDS-4S Series

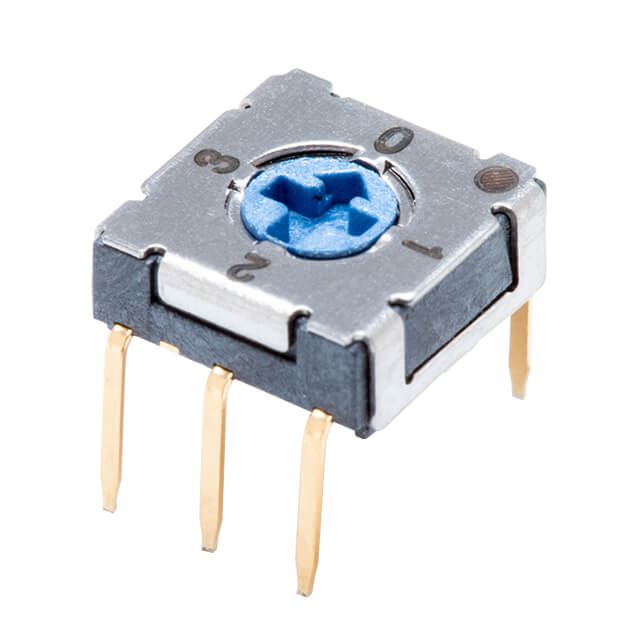

Dip Switch BCD 4 Position Through Hole Rotary for Tool Actuator 100mA 50VDC
