R141306000W

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Technical Specifications

Parameters and characteristics for this part

Specification	R141306000W

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Cable Group	Dielectric Material	Mounting Feature	Housing Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Shield Termination	Connector Style	Frequency - Max [Max]	Center Contact Plating	Impedance	Body Finish	Body Material	Mating Cycles	Center Contact Material	Voltage Rating	Cable Group
Radiall USA, Inc. R141304000	1	179 316 316 Double Braid RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Solder	Female Socket Jack	Clamp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Beryllium Copper	500 V
Radiall USA, Inc. R141306000W	1	316 RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Crimp	Female Socket Jack	Crimp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Beryllium Copper	500 V
Radiall USA, Inc. R141308000	1	RG-58	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Crimp	Female Socket Jack	Crimp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Bronze	500 V	141

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

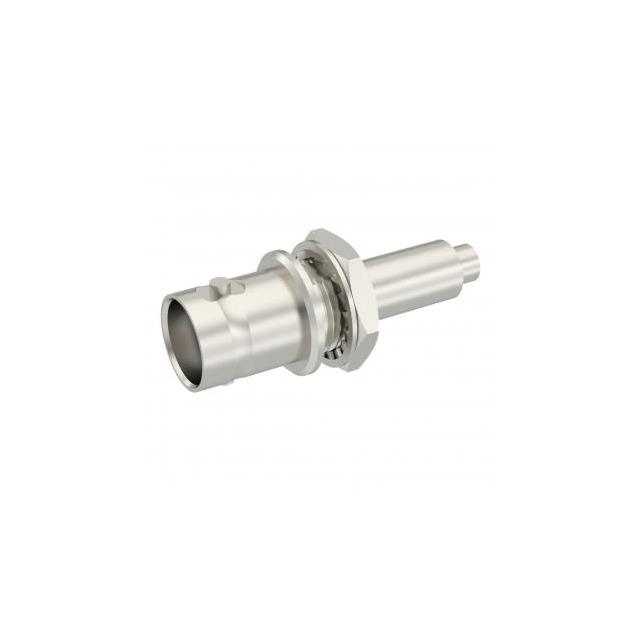

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
