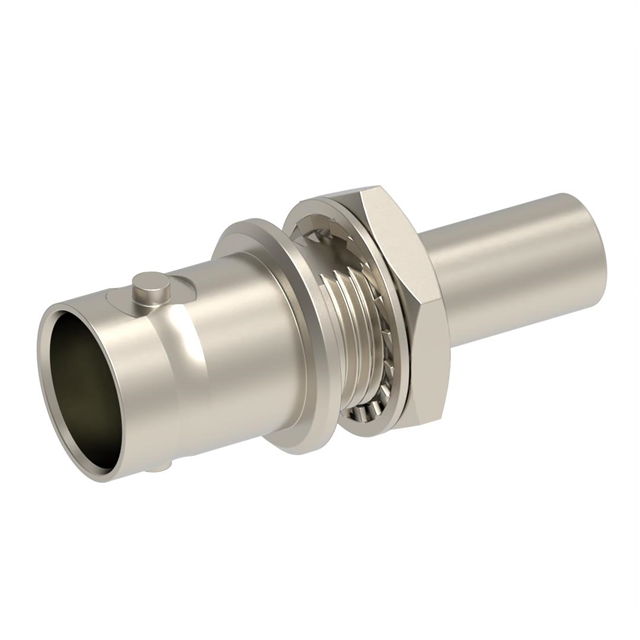

R141308000

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Technical Specifications

Parameters and characteristics for this part

Specification	R141308000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Cable Group	Dielectric Material	Mounting Feature	Housing Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Shield Termination	Connector Style	Frequency - Max [Max]	Center Contact Plating	Impedance	Body Finish	Body Material	Mating Cycles	Center Contact Material	Voltage Rating	Cable Group
Radiall USA, Inc. R141304000	1	179 316 316 Double Braid RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Solder	Female Socket Jack	Clamp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Beryllium Copper	500 V
Radiall USA, Inc. R141306000W	1	316 RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Crimp	Female Socket Jack	Crimp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Beryllium Copper	500 V
Radiall USA, Inc. R141308000	1	RG-58	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Silver	Bayonet Lock	-65 ░C	165 °C	Crimp	Female Socket Jack	Crimp	BNC	4 GHz	Gold	50 Ohms	Nickel	Brass	500	Bronze	500 V	141

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.57

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
